In today’s age of electronically activated, variable-timed, spring-less valvetrain systems the concept of the sleeve valve looks pretty esoteric — or was this thinking just ahead of it’s time? As manufactures move beyond the limitations of the valvespring in instances like the Koenigsegg camless engine, classic Wankel designs, or other inventive solutions we think it is worth a look back in time.

The sleeve valve engine carries with it an almost victorian grace in it’s mechanical dynamic. The seemingly perplexing motion of the pistons, sleeves, gears and rods easily overstimulate the eyes and mental capacity for comprehension until the ballet is broken down by way of a cutaway. In their heyday of the early to mid 20th century, massive displacement sleeve valve engines powered the monstrous aircraft of the allied forces.

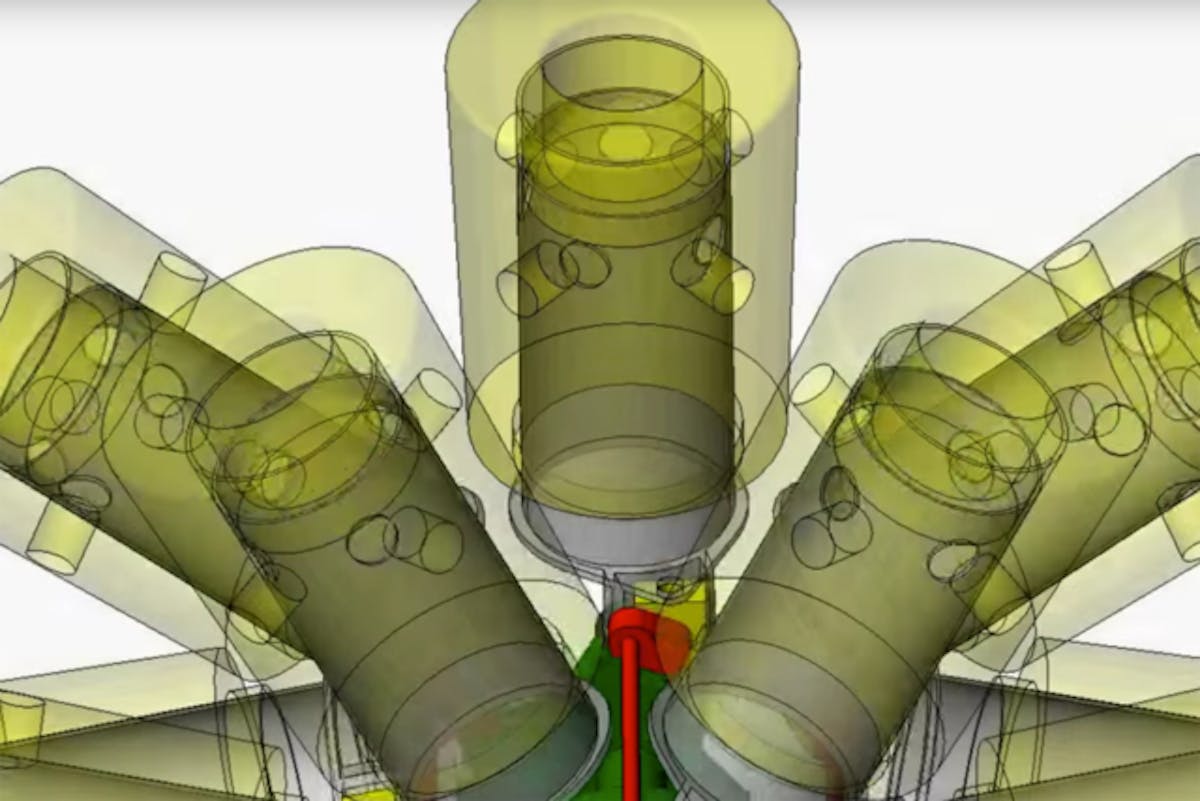

Examples from the famed Bristol Engine Company powered aircraft such as the Hawker Sea Fury — famed for it’s post war racing tenure at Reno, and a variety of other multi-engine aircraft. As we see in the video this system of intake and exhaust utilizes two live sealing surfaces: while the pistons reciprocate the cylinder walls gyrate to cover and uncover ports.

This elaborate system of movement is driven by a central gear around which several orbital gears drive the cylinder sleeves up and down by meshing in a rack and pinion style joint.

At face value this system appears more complicated than a traditional pushrod, and overhead valve arrangement but the relative quantity of moving parts is about the same. Arguments arise when it comes to oil consumption, wear, or other trade-offs but as a concept the system saw vast use.

The beauty of the radial engine is compounded by it’s modularity, a single row of seven or nine cylinders is easily multiplied by two or four to create engines of incredible displacement generating thousands of horsepower. Generally a standard integrated part of a radial engine, a centrifugal supercharger resides on the front of the engine to force-feed the powerplant.

The sound of the radial picking up cylinders as the start-up progresses is an iconic chatter, and their low rpm roar is easily mistaken for laziness, but it bears remembering that they are optimized for a sub 3,000 rpm redline, and make full use of their size. The difference in note between the sleeve valve radials and the competing Pratt and Whitney engines is distinct, with a more muffled poppy induction sound characterizing the Bristols.

All in all the sleeve valve engine has it’s place in history, perhaps to make more appearances in the future as we seek to optimize and improve our engine designs.
