Kooks Headers: Build The Headers Around The Engine

Chris Clark of Kook Headers and Exhaust gave the presentation at the Advanced Engineering Technology Conference.

When deliberating over exhaust header choices, sizing and styles, the best choice will always be specific to individual engine applications

“The best headers are purpose built around engine combination, type of vehicle and style of racing,” says Chris Clark of Kooks Headers and Exhaust, who spoke on the opening day of the Advanced Engineering Technology Conference (AETC) held before the PRI show.

With that premise in mind, Clark offered an example of two 3,000-horsepower engines: one that gets a strong dose of nitrous oxide and the other boosted with turbochargers.

“If we had same size motor with roughly same horsepower output, the turbo headers would be about a quarter inch smaller than nitrous headers,” explains Clark, suggesting that the turbo engine might have 2.125- to 2.250-inch diameter tubes and the nitrous engine would have 2.50-inch or larger tubes. “For nitrous we typically don’t recommend a step, and urge against using merge collectors. However, for turbo, we’ll use smaller diameter tubes and merge collectors in an effort to get the turbos spooling faster.”

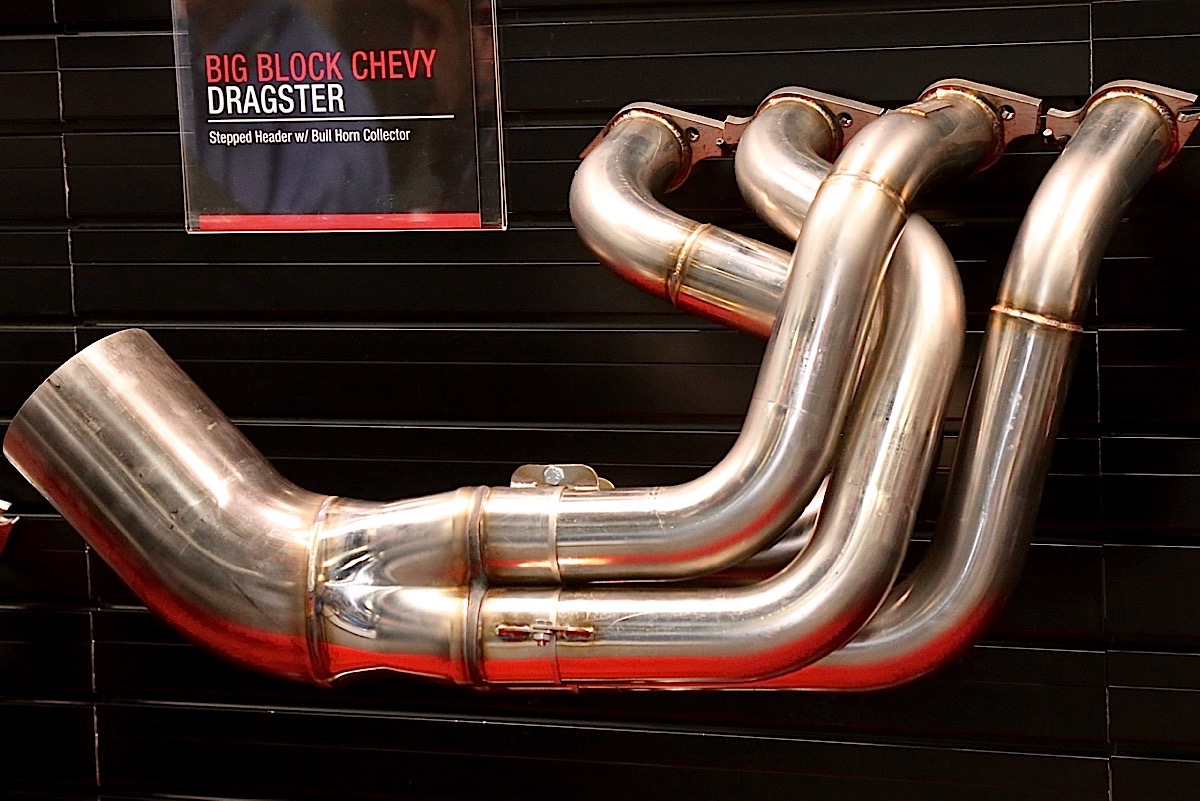

A Kooks stepped header.

Both of these scenarios are for drag race engines where mid-range power and torque are not the priority, just WOT operation where the urgency is to expel large quantities of exhaust gasses quickly. Road-racing engines are not always under WOT and the engine constantly operates under different rpm and throttle positions during the race.

“Under these conditions we’re not solely focused on peak horsepower and torque, rather maximum average horsepower and torque under the rpm curve,” says Clark. “We would experiment with different header primaries and most of the time incorporate a step design. It may have a double bump in the step.”

The header tubes are hand formed to match the flange openings, then the tubes are TIG welded for a secure fit.

Again, every application is different if the optimum header is to be built for a specific engine and environment. Clark says his team works closely with engine builders to determine desired operating rpm and power range. Many engines that require fine tuning will be fitted with a tri-Y design, which is a 4-into-2-into-1 arrangement with three Y merges per header.

“With tri-Y you can pinpoint exact frequencies in the exhaust and then build the optimal header length, secondaries and mid collectors to expand the operating torque band,” says Clark, adding that tri-Y headers are usually used in racing because they’re more expensive to manufacture.

Different materials are available for header construction, with mild steel the least expensive but also prone to corrosion. It should be ceramic coated or painted to help resist corrosion. Kooks uses stainless steel for its headers, generally selecting between 409 and 304 grades with the latter recommended for competition.

“304 has a good thermal properties and long lifespan,” says Clark. “Also, it’s repairable.”

Exotic metals like titanium and Inconel are also making inroads into header construction, but they’re seen only in higher forms of racing such as IndyCar and WEC.

“Inconel has similar properties to stainless steel but is much lighter,” says Clark.

Headers are now designed on the computer before any metal tubing is touched.

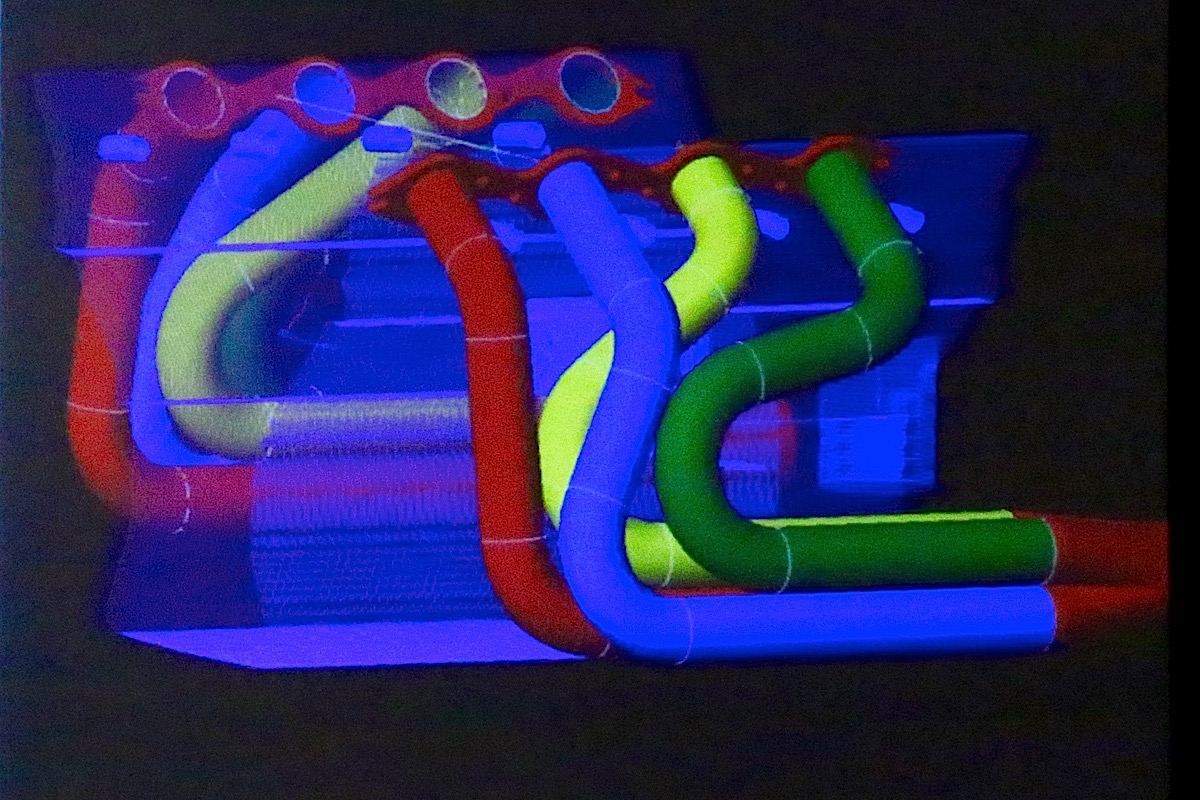

Custom header designs used to be measured and fitted by hand, but Kooks uses a 6-axis measuring machine to generate a digital model of the engine bay, allowing the header designers to build a computer model of the headers before touching a single metal pipe. That way header lengths, step locations and other factors can be established while ensuring proper clearance with suspension, steering, driveline and other vehicle components. However, it still takes an experienced craftsman to manufacture the headers.

“It’s one of the last metal fabrication art forms,” praises Clark.

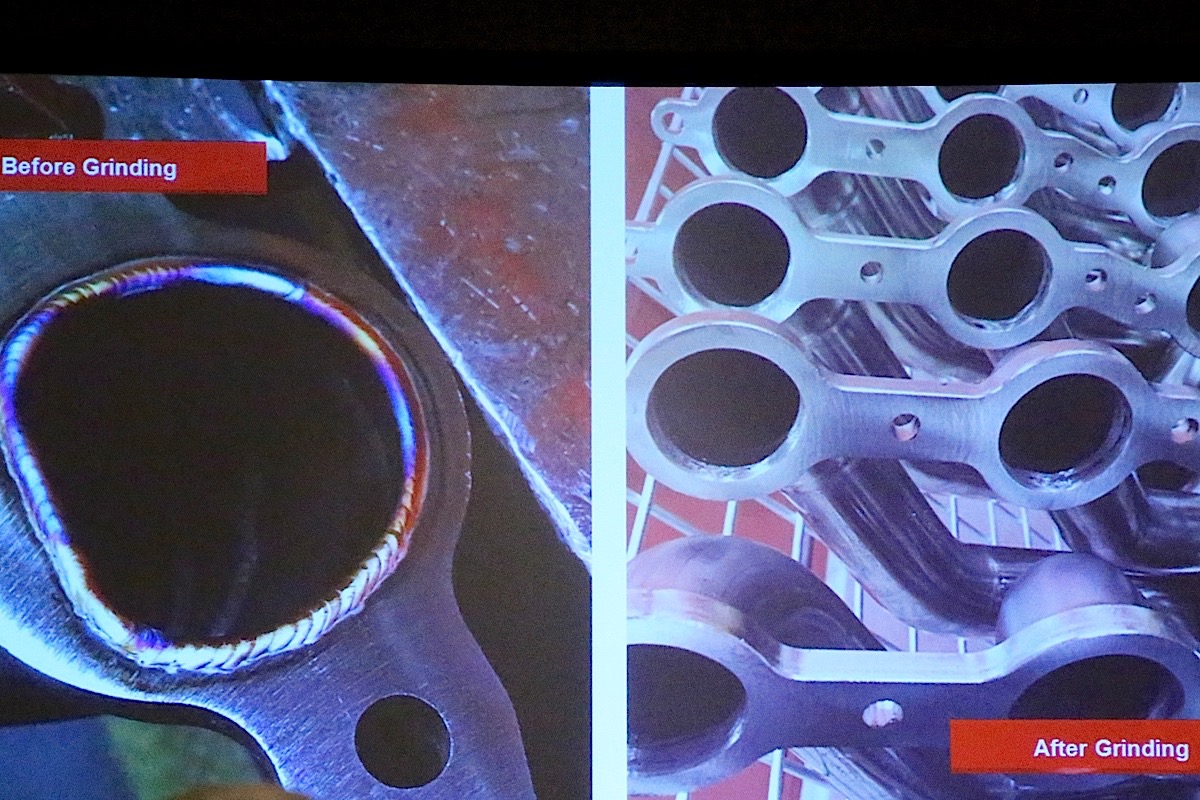

The Kooks manufacturing process includes precision CNC mandrel bending (see video above) of the tubes and hand-forming the tube ends to match the flange openings to ensure a smooth transition from the exhaust port on the cylinder head to the header tube. The tubes are then hand TIG-welded to minimize any chance of future leaks. The same attention to detail is repeated at step and collector locations (see video below) to ensure that leaks don’t interfere with tuning or affect vehicle OBD II controls. Clark has received inquiries about off-brand headers where the check-engine light comes on after installation.

“It’s likely a hole in the weld at the collector,” says Clark. “That additional oxygen is going to the O2 sensors and causing the check-engine light. At the race track, it means tuners can’t get an accurate read if there’s a leak in the hot end of the exhaust system.”

Even with a set of headers properly tuned for a late-model street vehicle, there will always be a choking point with the factory catalytic converter. Kooks is developing a “Green Cat” with 2.5-, 3.0- and 3.5-inch inlets that will handle up to 900 horsepower while cleaning up the exhaust enough to pass any sniff test at the smog station. The next step is to validate the products and obtain an EO# from CARB.

“We’re working with SEMA to develop a header and cat combo that can be presented to CARB to change the industry,” predicts Clark.

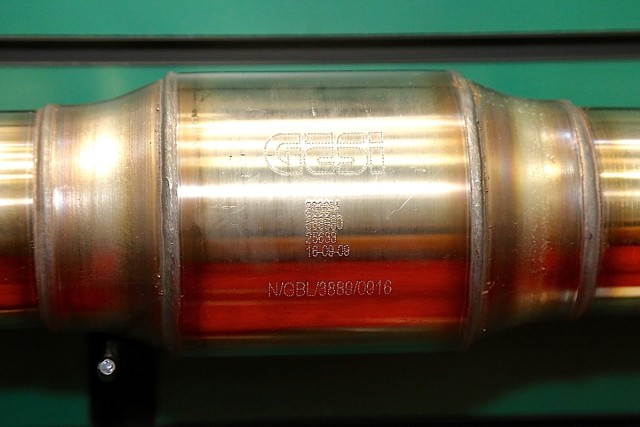

The Green Cat from Kooks Headers will be available in three sizes.
