Precise Location — Explaining Crank and Cam Position Sensors

Modern engines have always been considered one of the precision marvels in the world of engineering. They rely on harmony between different components to deliver maximum power with minimal waste.  A pair of unsung heroes among these many sensors required are two less-known, but essential parts: crank and cam position sensors. These ensure that data reaches the so-called “brain” of the engine; the engine control unit (ECU). The data provided by these two sensors helps the system work with extremely precise data and therefore provide maximum engine performance.

crank and cam position sensors

Crankshaft Position Sensor: The Orchestra Leader of Combustion

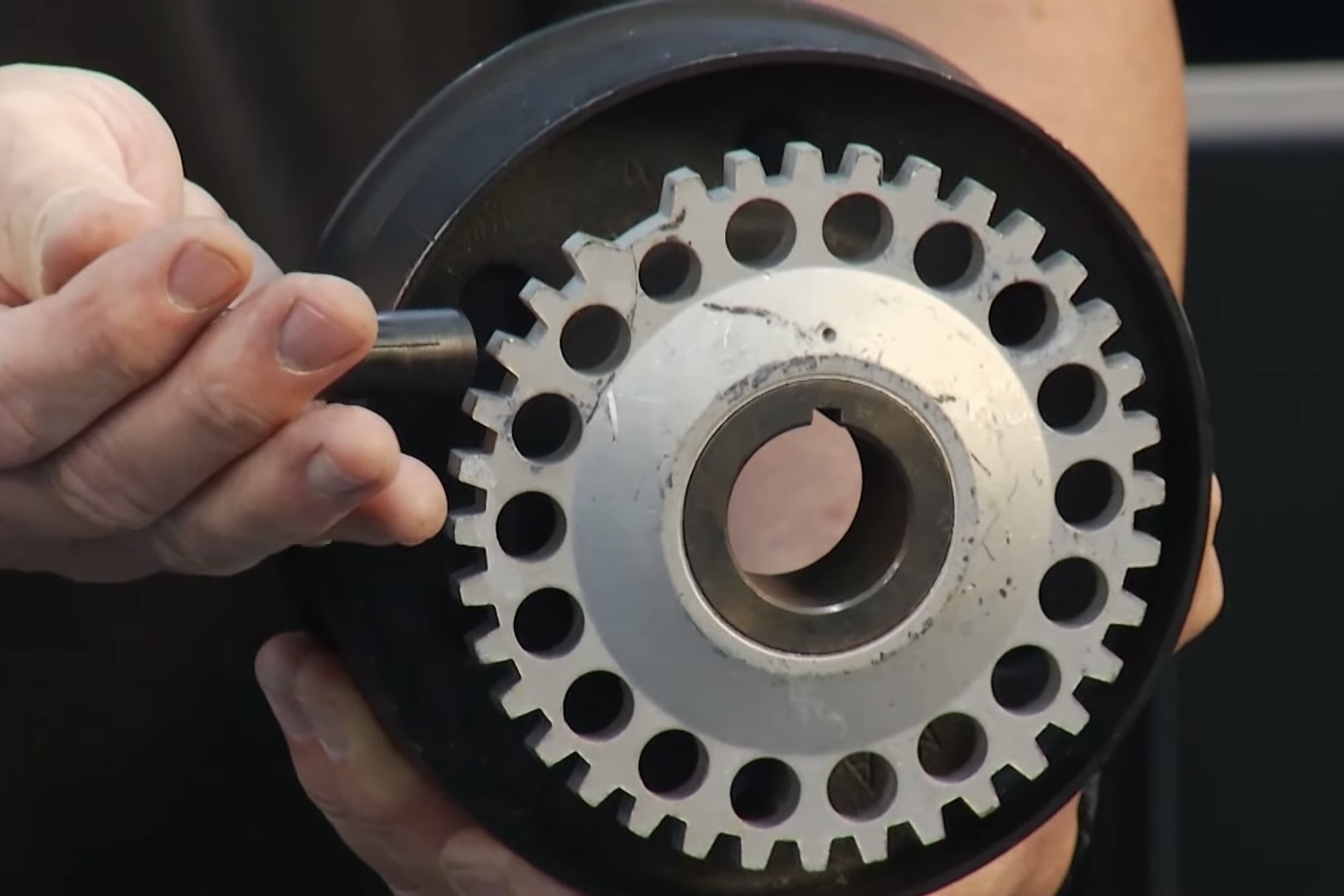

The crankshaft position sensor monitors the crankshaft’s rotational speed and position. This information is what determines the ignition timing and fuel injection. It simply tells the ECU which cylinder is in position and ready to ignite so that the combustion process will be very smooth and powerful.

Two Major Types of Crankshaft Sensors

Analog

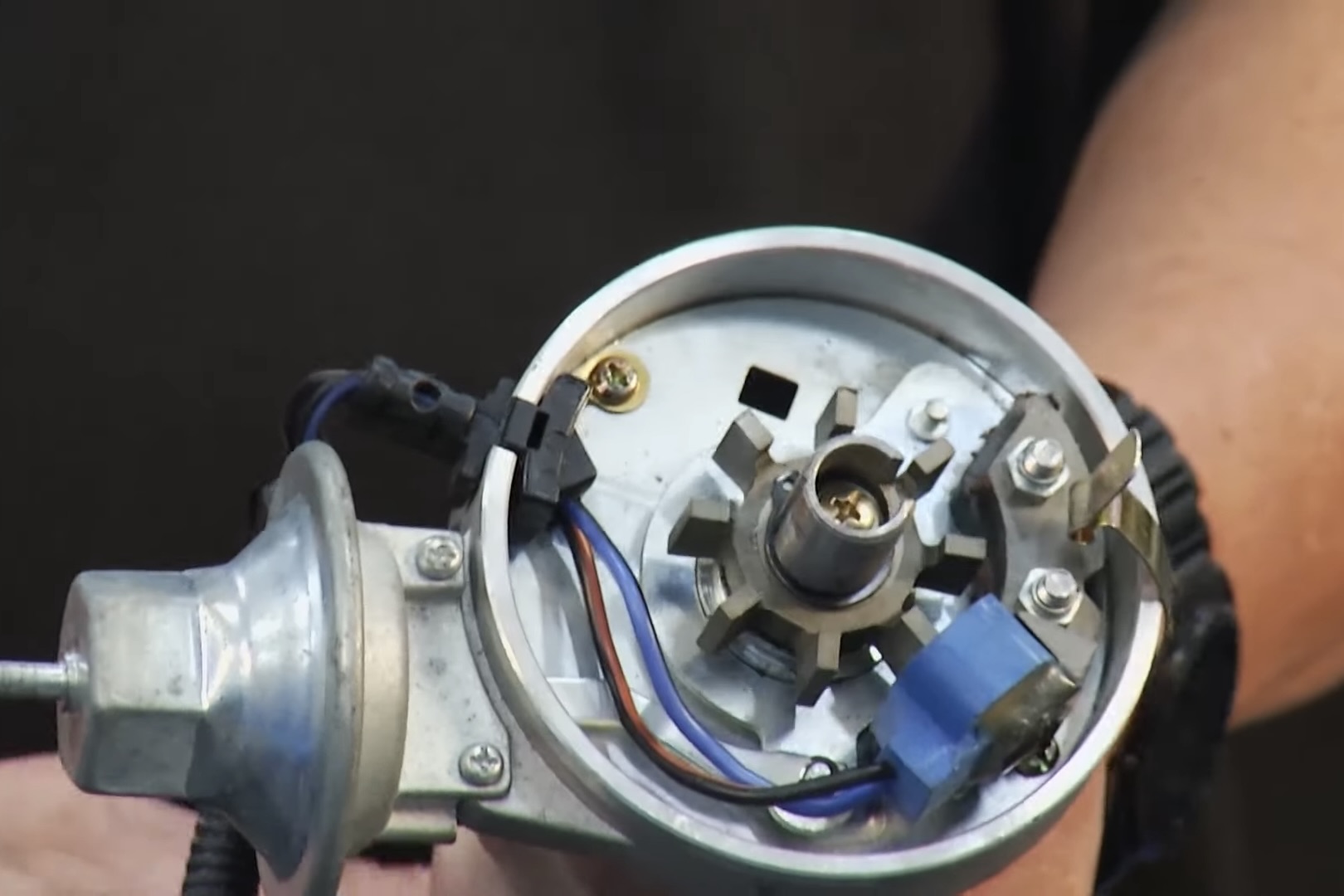

In an analog type of sensor, a magnetic pickup generates an AC signal as a trigger wheel spins a magnet past it. The ECU converts this signal into positional data that tells the brain exactly where each piston is in its respective cylinder.

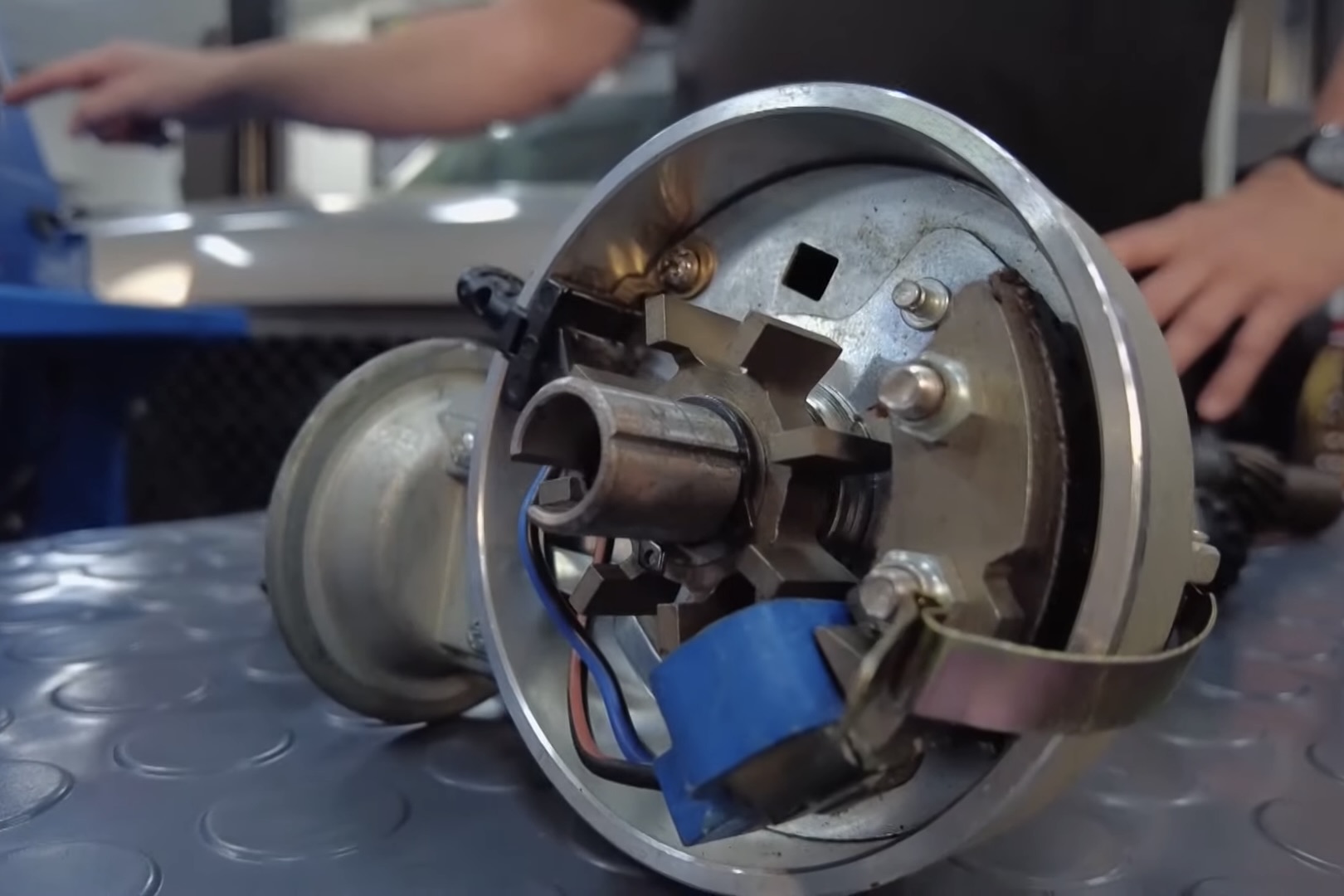

digital crankshaft sensor: one of the types of crank and cam position sensors

Digital

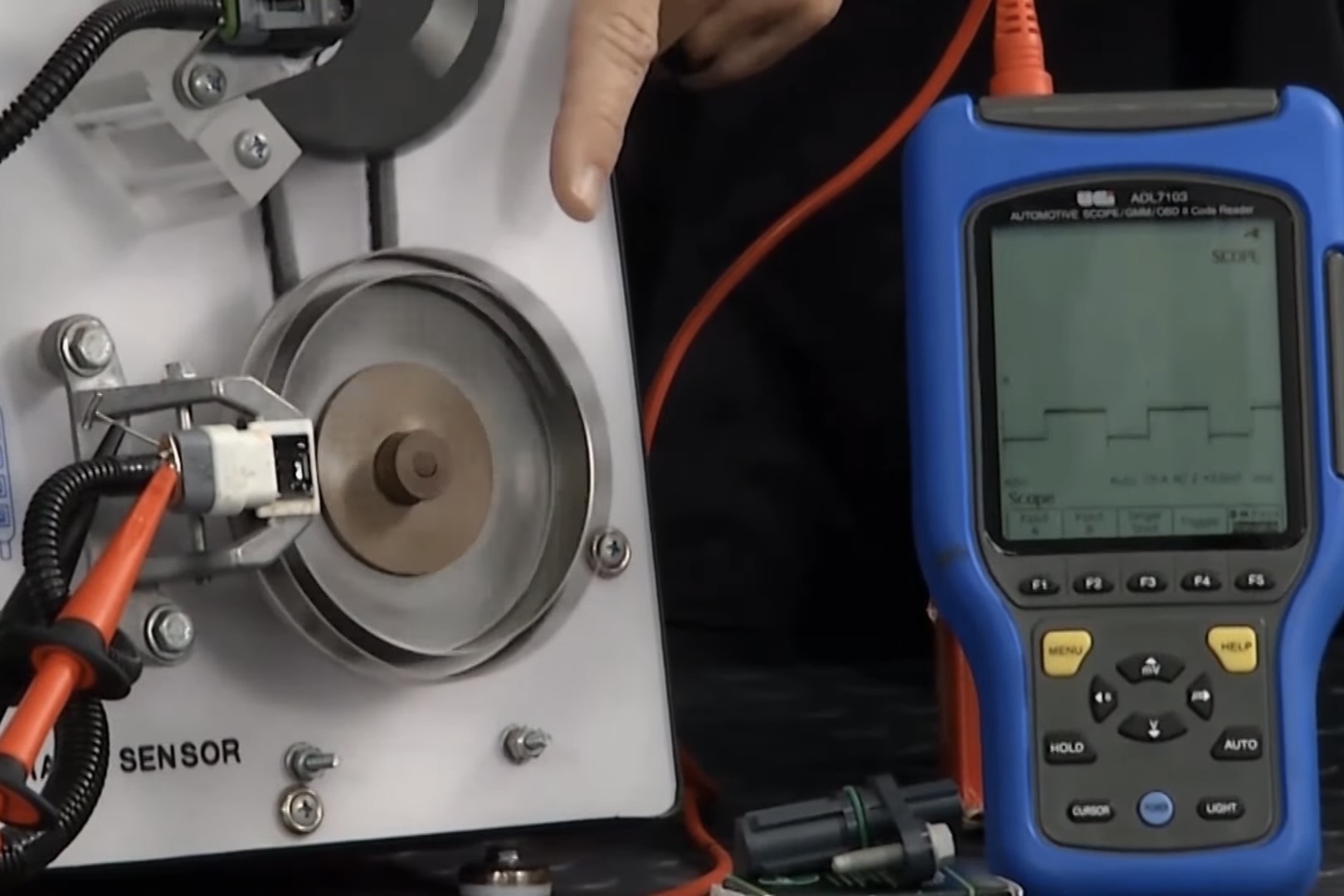

Digital crankshaft position sensors use the Hall effect, which produces a DC signal switching on and off as the trigger wheel passes by. This gives more precise data to the ECU than an analog sensor, to produce much finer controlability over the timing of the engine. The increased precision is important in engines with advanced technologies like variable valve timing, as well as in high-RPM applications.

Camshaft Position Sensor

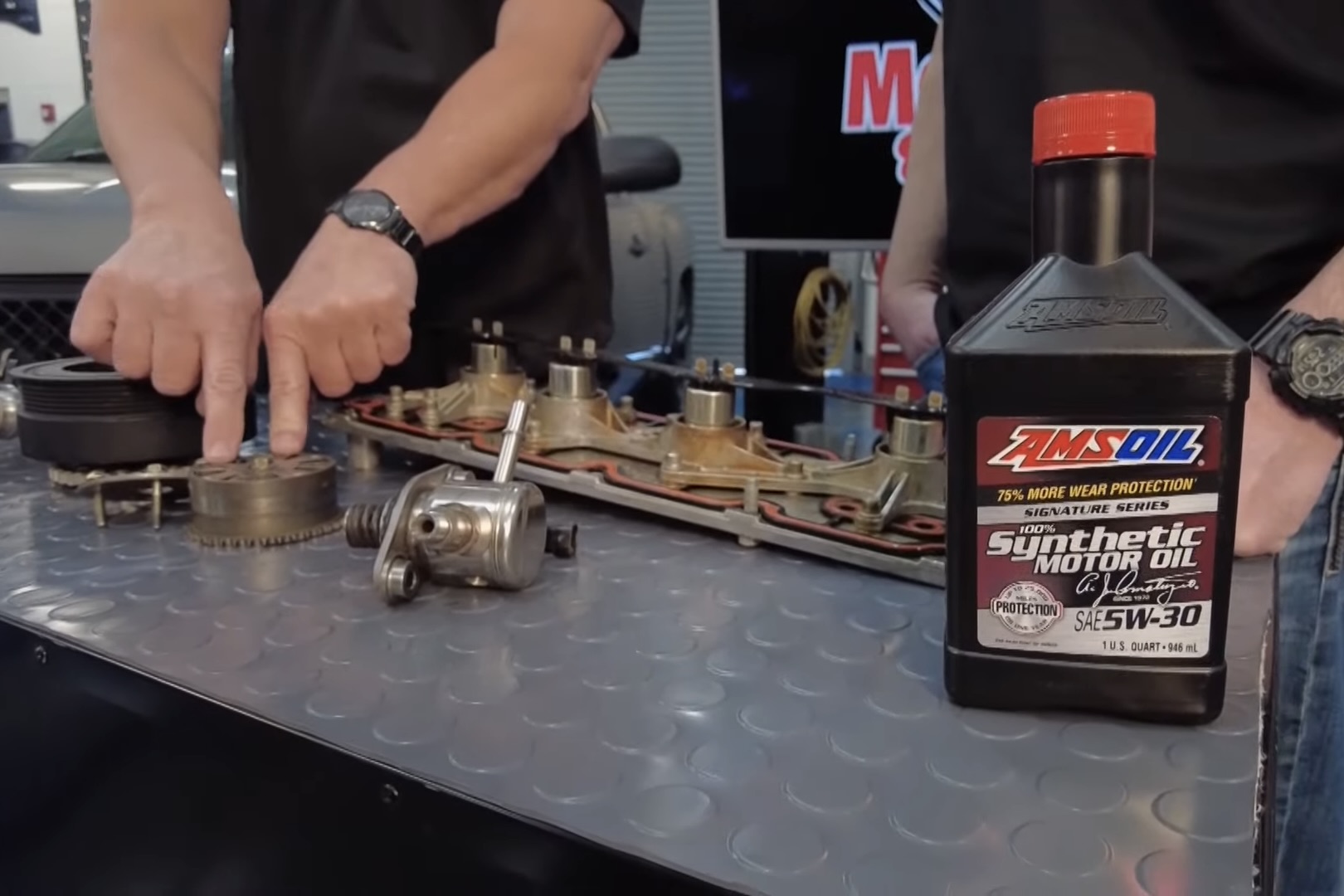

The camshaft position sensor performs a similar duty, but is strictly focused on the camshaft, which dictates the opening and closing of the engine’s valves. This sensor provides data on the position of the camshaft so the ECU can correlate that data with the crank sensor data, to control the valve timing with great accuracy, especially in engines equipped with variable valve timing (VVT) technology. VVT optimizes the timing of valves based on the changes in engine speed and load. This maximizes both power and fuel economy. The ECU can easily coordinate the combustion events of the engine with precise timing of the valves when the camshaft position and crankshaft position sensors work in unison.

The Importance of High-Quality Oil

The increasing sophistication of modern engines with VVT and direct injection boosts the demands placed on engine oil. The oil is not only a lubricant; it now actively participates in engine functions, such as actuating VVT mechanisms. So, it becomes all the more important to have high-quality oil along with the right additives and viscosity to keep such systems working perfectly under stress.

Peak Performance Ensured

Modern engine management would not be possible without crank and cam position sensors, as they ensure very precise data is provided to the ECU, resulting in optimal ignition timing, fuel injection timing, and valve event timing for better performance and higher fuel efficiency with very low emissions. Regular servicing and good-quality oil make it possible to keep these sensors and the systems they support operating at optimum levels. This ensures your these complex systems run smoothly and reliably over many years.
