The GM LS family of engines is the new darling of the industry — taking up where the small-block Chevy left off. While the 6.0L versions are what everybody wants, these engines are not always easy to find or afford. That puts its smaller 5.3L sibling as the new favorite with budget-conscious LS engine builders. So it’s no wonder that the market is asking for a drop-in piston solution.

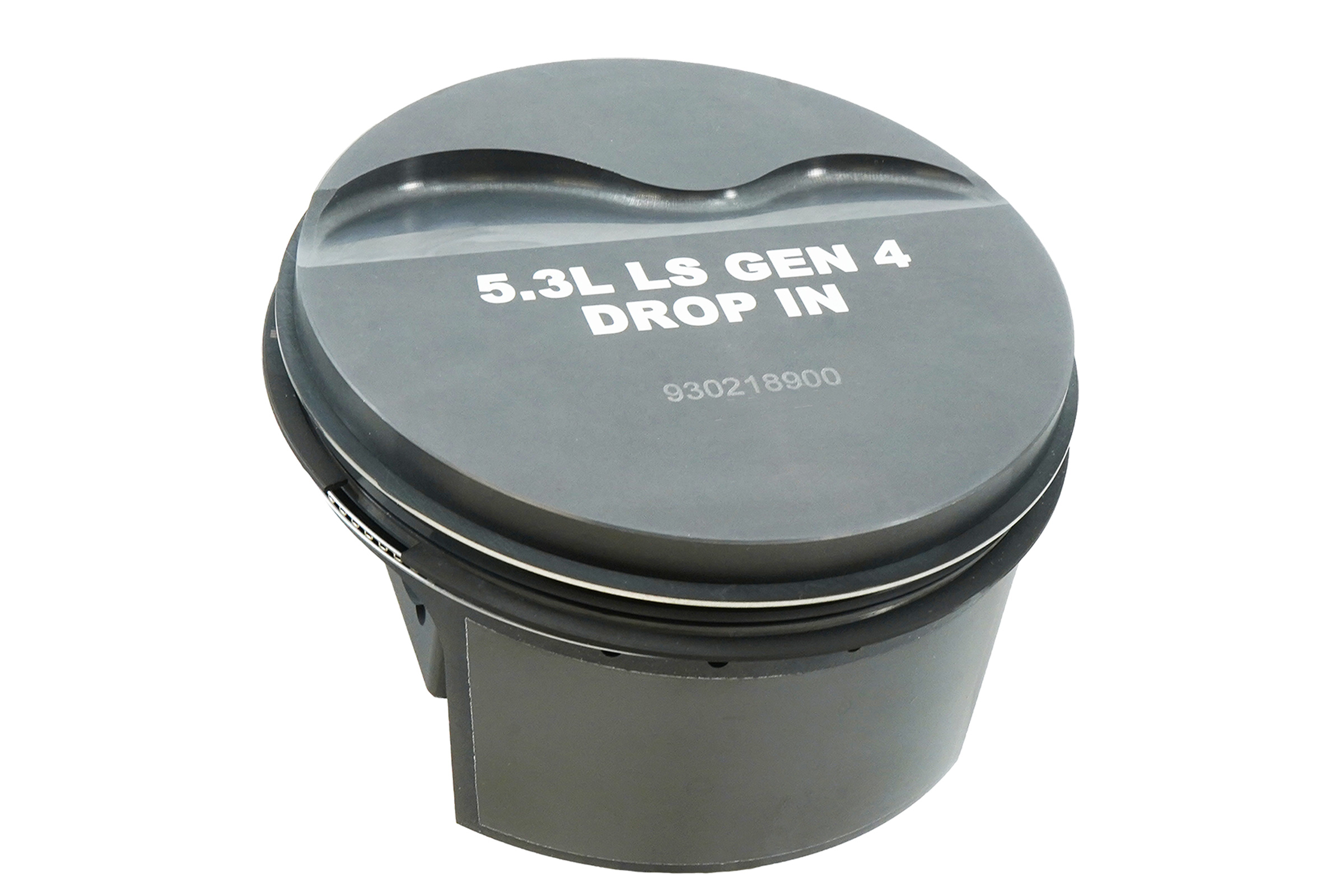

MAHLE has recently released a new forged piston for the Gen-IV 5.3L engines that is a drop-in replacement that offers numerous advantages. First, this is a forged aluminum 2618 alloy piston but it retains the stock 0.943-inch wrist pin so it can be put into place on stock rods without requiring rebalancing of the rotating assembly — hence the “drop-in piston” name.
There are several benefits to this effort. The lead-off improvement is the thinner 1.0mm/1.0mm/2.0mm ring package that is included with this new forging. While this may not sound like much of an improvement over the OE 1.5mm/1.5mm/3.0mm configuration, this is a 33 percent reduction in ring width that promises reduced friction which means lower oil temperatures, lower cooling system operating temperatures, and perhaps a few extra horsepower. As an added bonus, the Napier second ring promises enhanced oil control.
This new Mahle forging also includes deeper valve pockets to allow running a more aggressive cam package that increases both lift and duration. Plus, the new valve pockets will also accept up to a 2.00-inch intake and 1.60-inch exhaust valve diameters.
Combine all these enhancements with Mahle’s famous phosphate and Grafal skirt coating and you have a perfect fit to pump the compression on a 5.3L Gen V to 10:1 with drop-in simplicity. We’ve included a list of all the different GM RPO engine codes to make the selection even easier. This newest addition to the Mahle lineup falls under PN 930218900 and is available at any Mahle retainer.
Gen IV 5.3L Engine Codes
LMF LMG LH9
LH6 LC9 LS4
