There’s a war being fought out over the internet right now – and the first victim in this explosive war of words is the truth. So we decided to talk to Director of Engineering for Autolite, Jerry Reeves, who not only knows this subject really well, but is a car guy, too. What we’ve learned will hopefully dispel many of the myths and old wives’ tales surrounding the spark plug.
One of the most contentious areas of disagreements surrounds fine-wire spark plugs. It seems that everyone has an opinion about platinum and iridium plugs compared to the standard copper-core version. We’ll just start by saying that there’s a good chance that whatever you’ve read or been told about fine-wire plugs is probably incorrect.

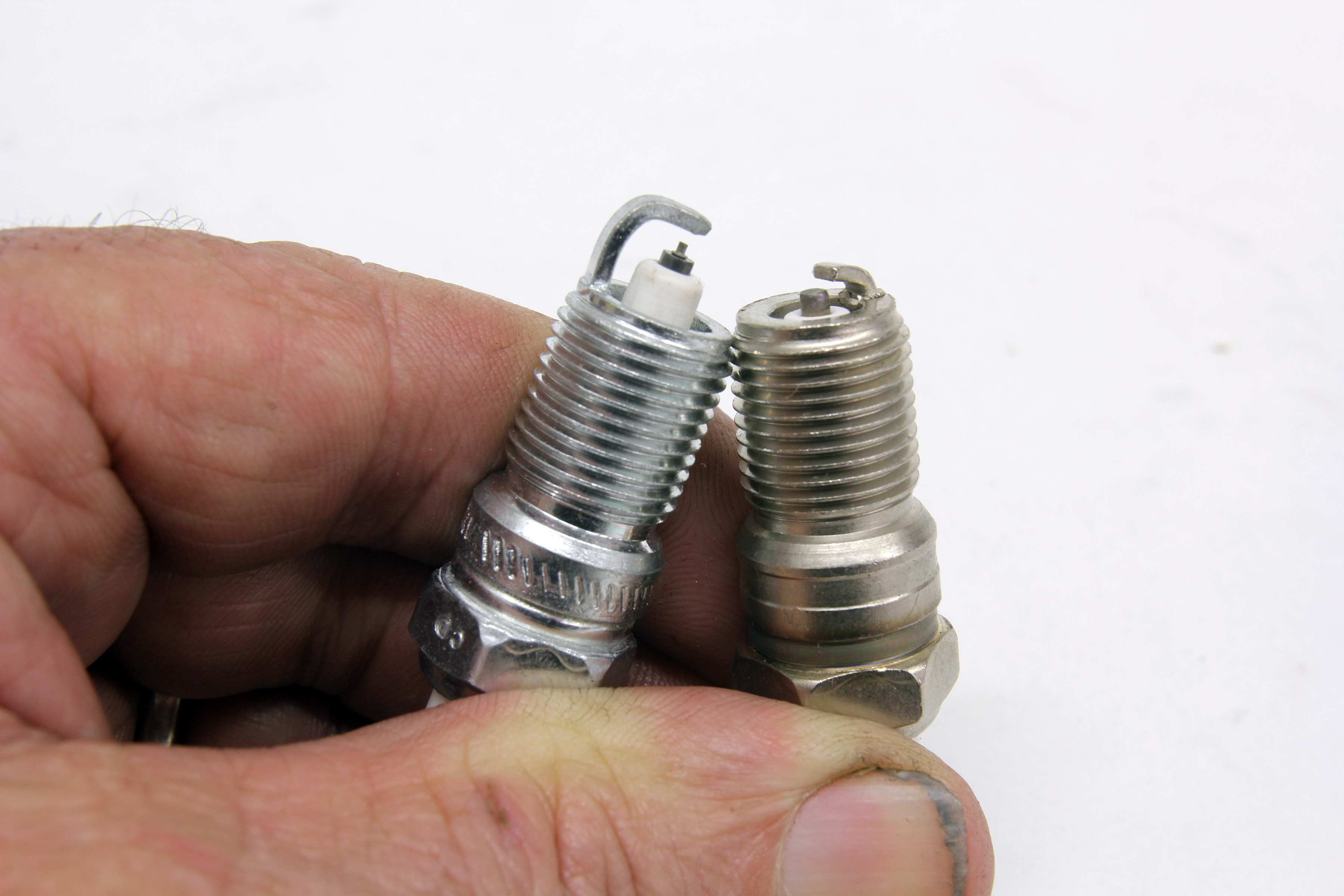

First, we should define the terms “detonation” and “pre-ignition”. We’ll start with detonation, which is an uncontrolled combustion pressure spike that can occur at any time, even before the spark plug fires. This can occur as a result of high cylinder temperature and/or pressure that causes the air and fuel to self-ignite. Pre-ignition is where combustion initiates before the spark plug fires as the result of an extremely hot, glowing ignition source in the chamber. Many times this is traced (but not limited) to a long ground strap used on an extended-nose spark plug. If you pay close attention, you’ll notice that most racing plugs do not employ extended-nose center electrodes. This keeps the ground electrode short, minimizing its path to the cylinder head where the heat can be dissipated.

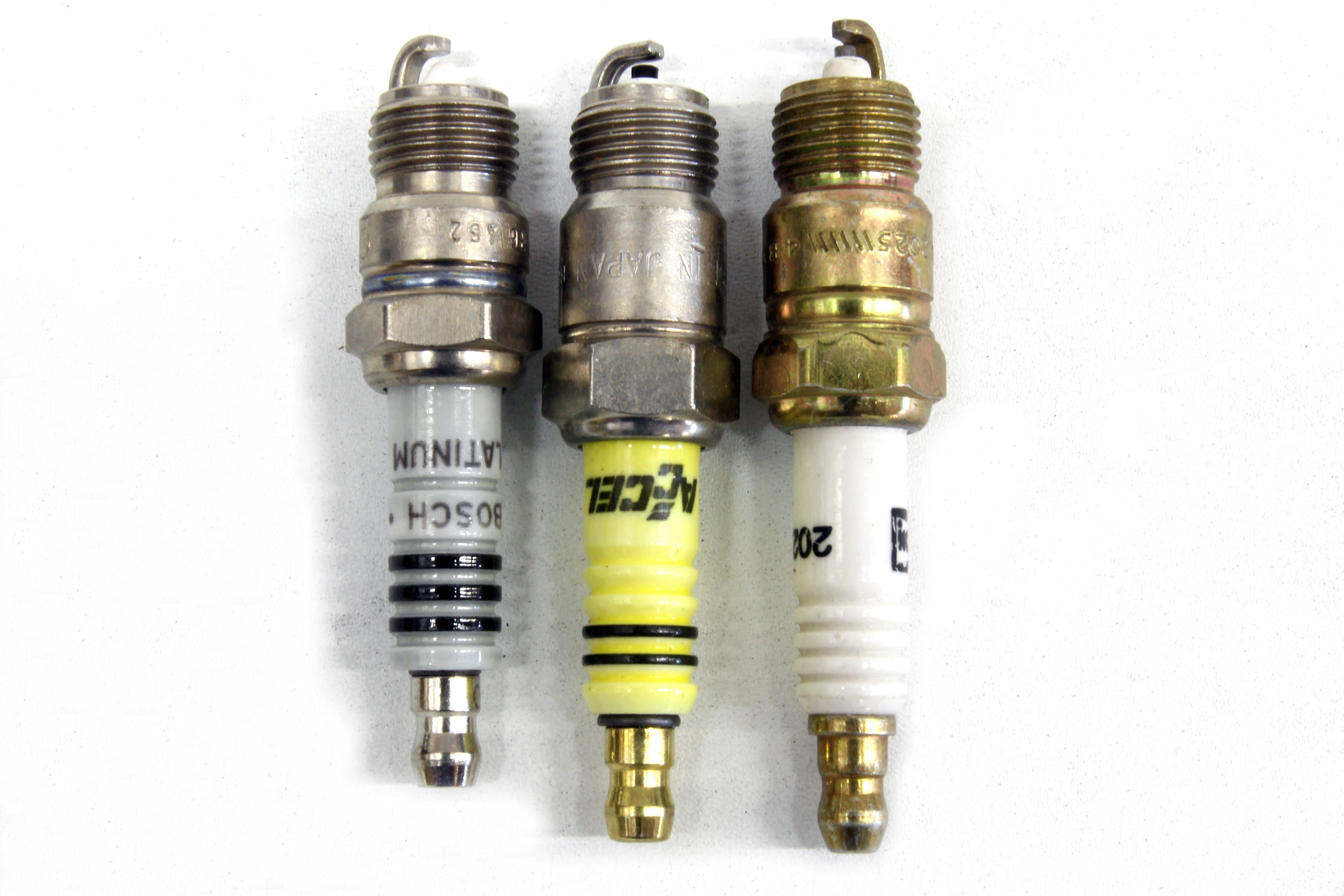

We should also define the term “copper core” when talking about spark plugs. Copper is used as the core material for nearly all spark plugs. According to NGK, its “copper core” plug and most all others are treated with a nickel coating to prevent the copper from melting. This applies to fine-wire plugs as well, which use a copper core to improve conductivity.

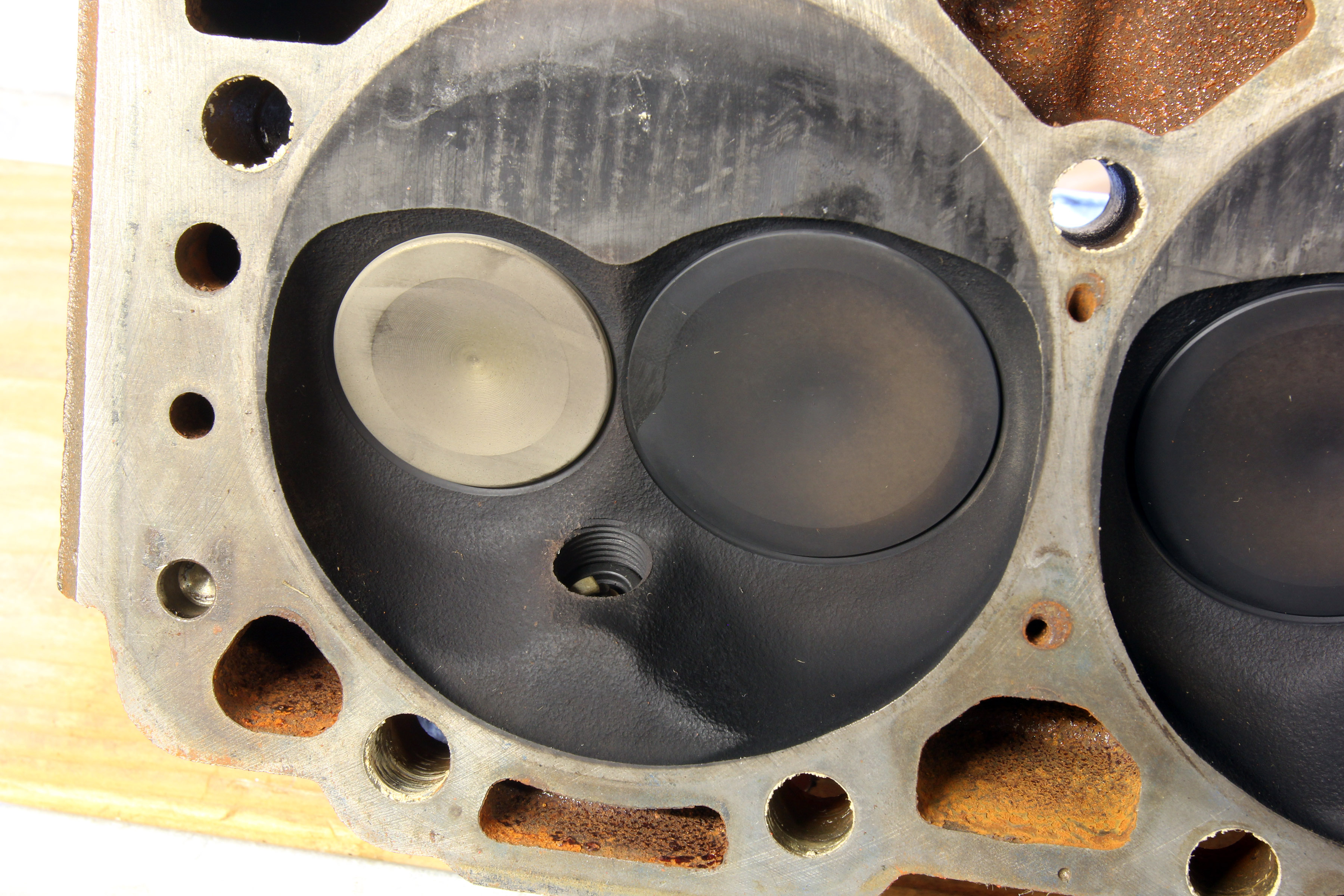

A spark plug’s heat range is a major factor in engine tuning, and as a result, should be given the attention that it deserves. The heat range is established by the distance the heat in the center electrode and insulator ceramic must travel before it contacts the steel body of the spark plug. A “hot” spark plug lengthens the depth of the ceramic which lengthens the distance from the center electrode end of the plug to where it contacts the spark plug shell. From there, the heat is dissipated into the cylinder head and eventually into the cooling system. The path for heat to escape from the center ceramic to the plug’s steel body is at the very bottom of the steel shell. Cold spark plugs offer a shorter heat path to the shell. Most competition engine builders commonly choose a colder heat range plug to prevent possible engine damage.

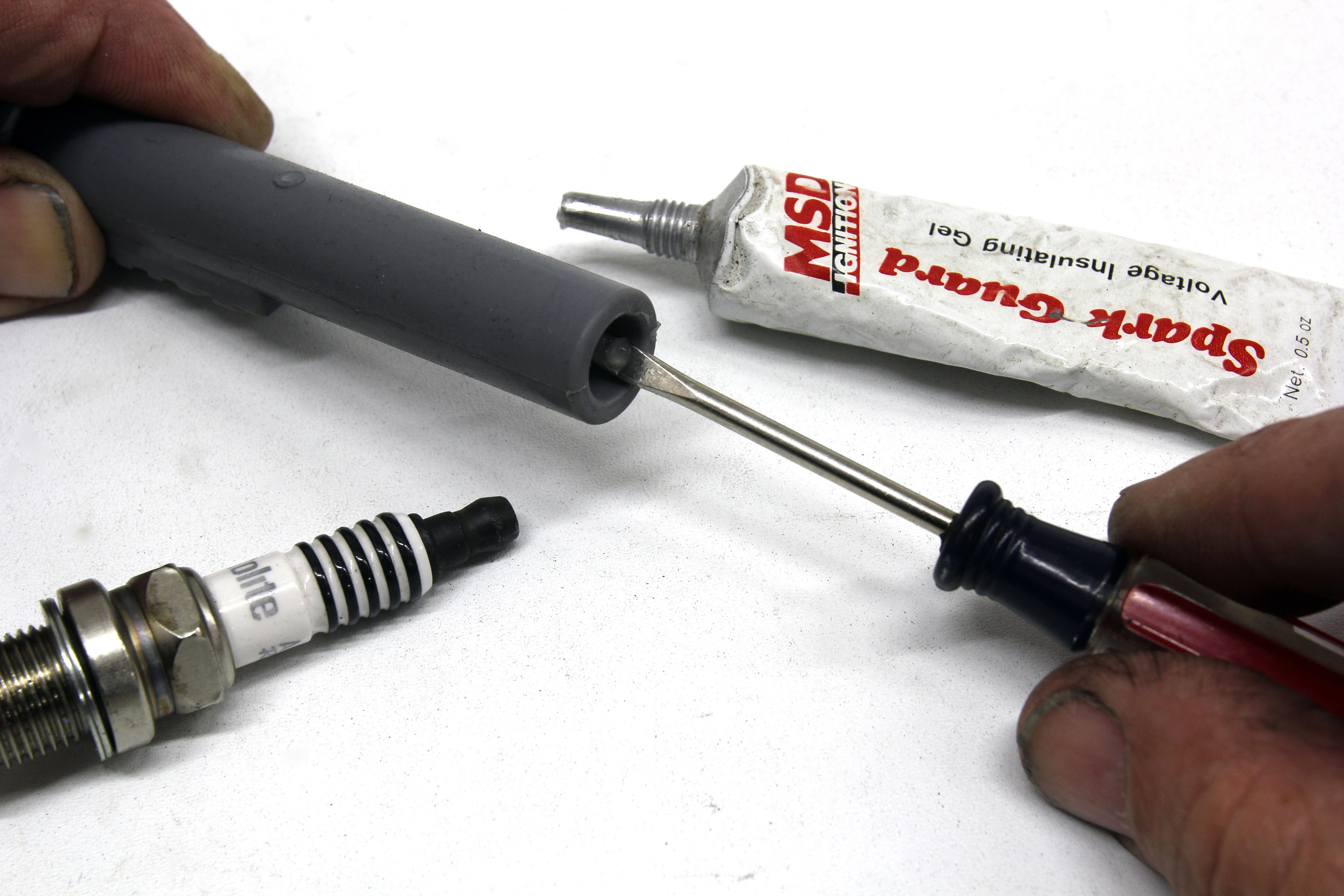

Dispelling The Spark Plug Myths

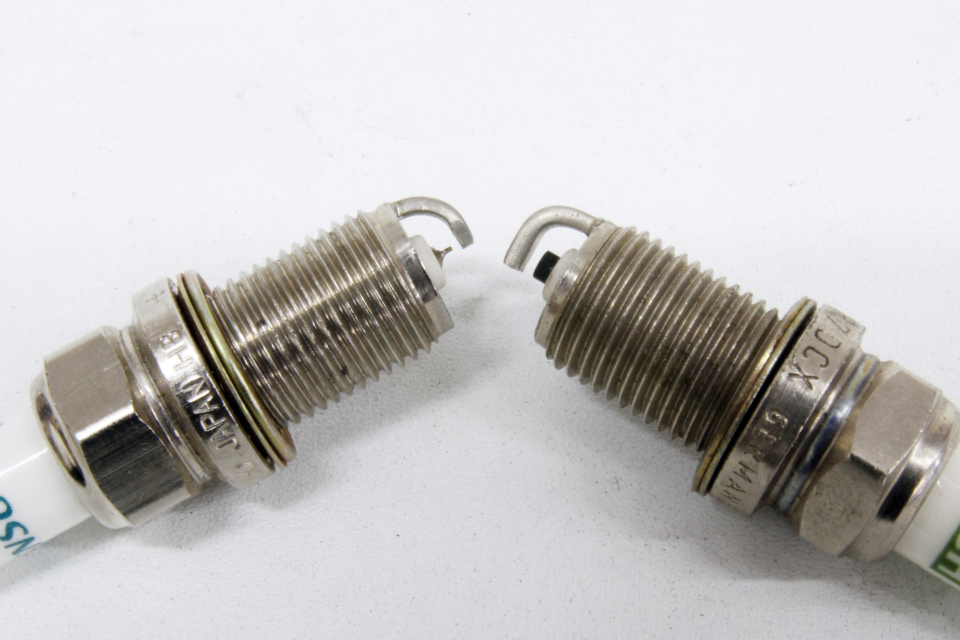

Fine-wire plugs were designed for use in late model engines that are tasked with the seemingly ridiculous goal of lasting for 100,000 miles in a production engine. Reeves says the single- and double-platinum were employed strictly as a measure to increase the durability of the spark plugs. The move to iridium plugs could potentially be a performance advantage.

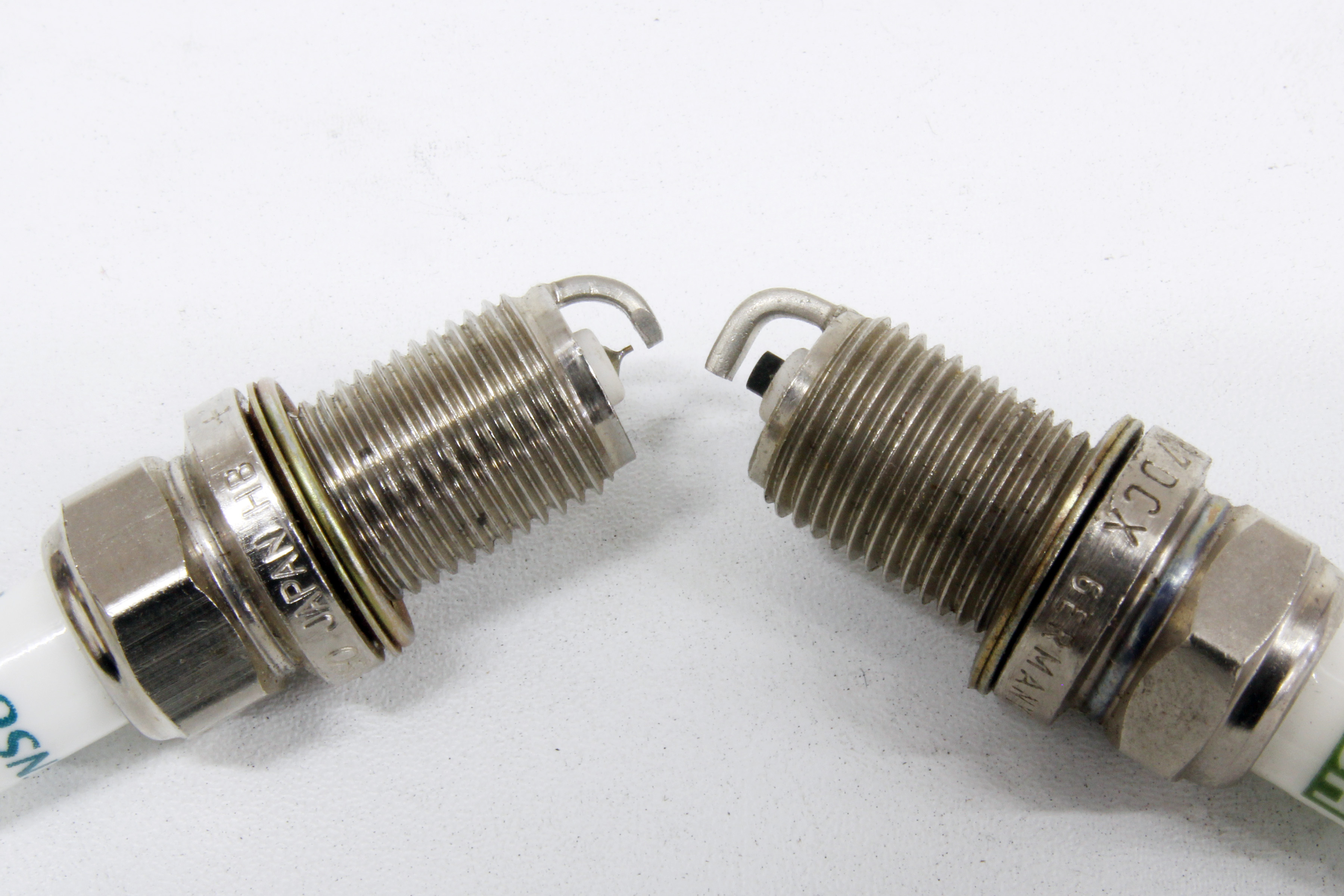

An iridium plug uses an extremely fine wire (0.5 to 0.6mm or 0.019-0.023-inch) that, because of its small size, can reduce the required coil voltage by as much as 20-percent. This means there’s an even greater reservoir of voltage at the coil if the cylinder requires it. Fine-wire iridium plugs can improve the combustion process even if there is a high level of exhaust gas dilution—built-in EGR—as with engines with long-duration camshafts with a greater amount of overlap.
We’ve seen statements from tuners claiming that fine-wire plugs run “hotter” than normal plugs and that you should avoid fine-wire plugs especially in supercharged or turbocharged applications. Reeves points out that the facts support the exact opposite conclusion. As an example, the supercharged production 2018 Dodge Hellcat—which makes 707 hp from its 6.2L Hemi—specs an iridium spark plug. If you want another example, there’s the 350 hp Focus RS turbocharged four-cylinder Ford engine that pushes as much as 25 psi of boost, and it also employs an iridium plug.
Let’s look at some facts that support why fine-wire plugs are a good choice for a performance engine.
A commonly-held, yet mistaken conclusion is that the center electrode contributes to pre-ignition because iridium and platinum are poor conductors of heat. While the fine wires are indeed poor conductors, Reeves tells us that the addition of the precious-metal portion of the center electrode contributes only a small amount of heat and is not a source of pre-ignition.
The copper core does transfer a significant amount of heat. Reeves emphasized that the heat range rating of a copper-core spark plug and an iridium plug will be the same and that it is the tip (overall) length of the center ceramic that determines any plug’s actual heat range. The center electrode’s precious-metal material does not contribute to the heat range, nor is it a factor with regard to pre-ignition.
A common question with performance engines is selecting a spark plug heat range. A tuner will often spec a heat range one to three steps colder than the stock heat range. This often is a result of dyno test data where the colder plug appears to work just fine. But then on the street, this cold plug fouls sooner because there is insufficient heat to burn off the carbon deposits.

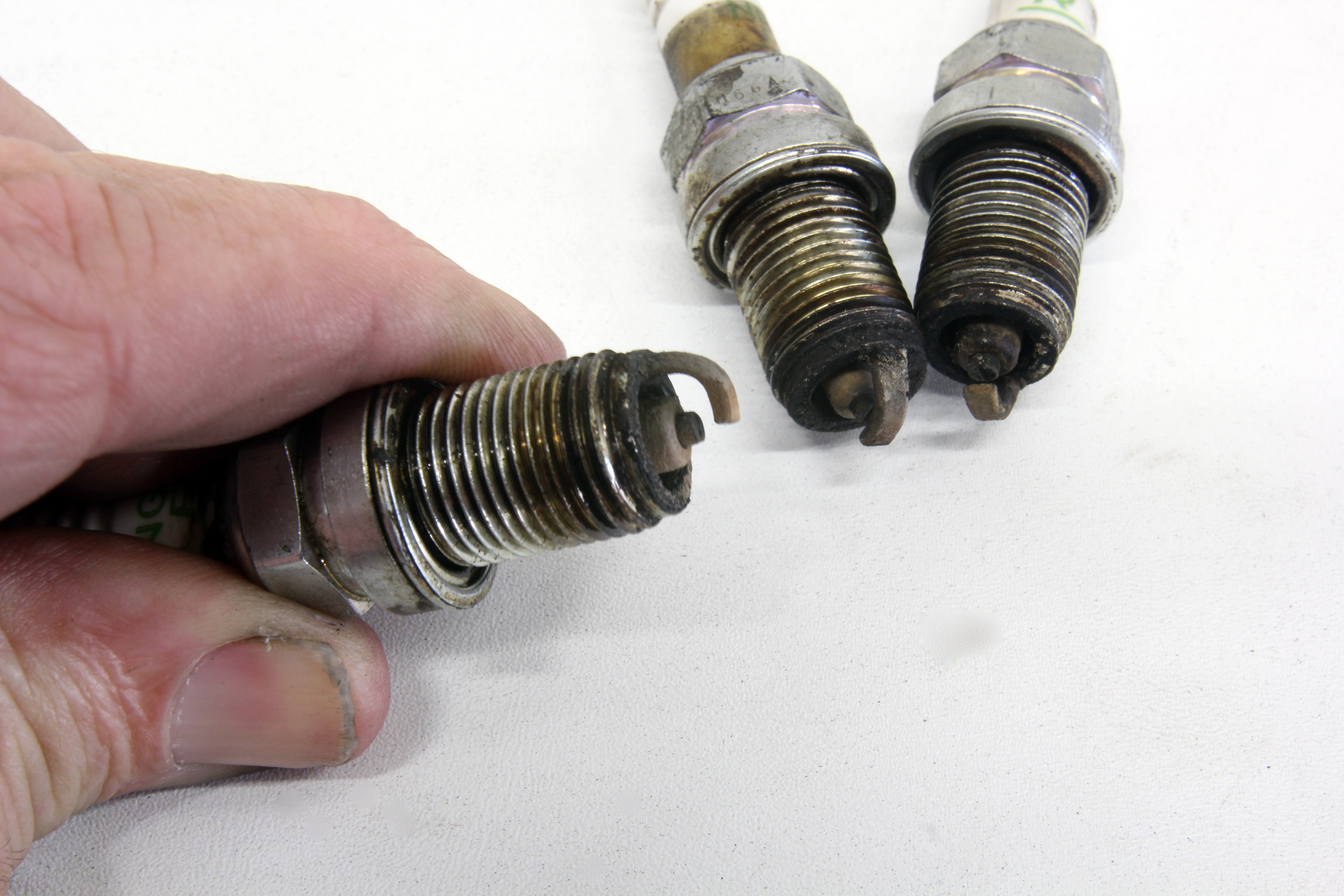

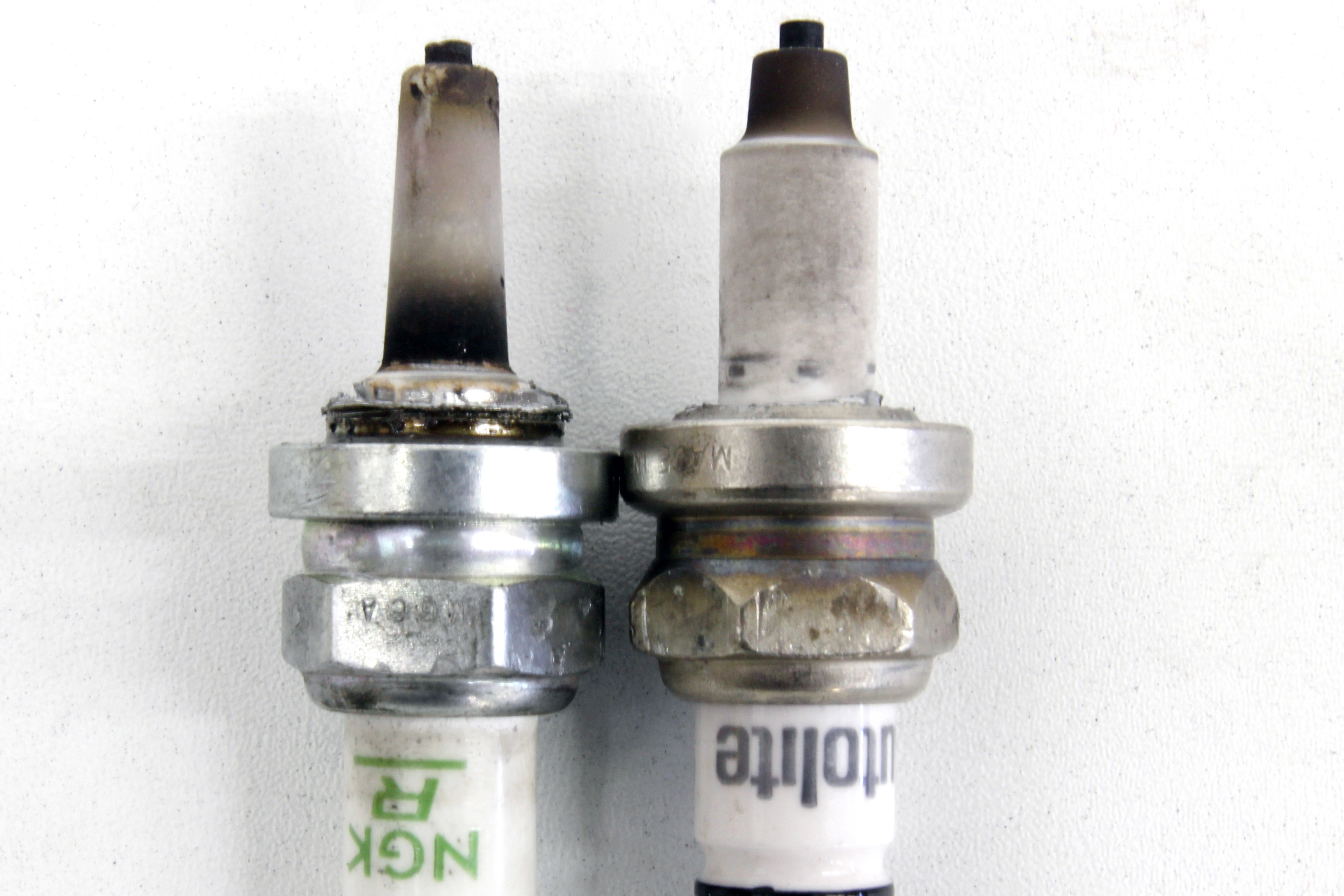

We recently added Holley’s Sniper EFI to a 468ci big-block Chevy, and while it seemed to idle well, we used an EMS 5-gas exhaust gas analyzer to help us dial in the timing and fuel. Then we discovered the engine still had the cold spark plugs in it from the previous year’s dyno test. The plugs were two steps colder than the stock heat range and appeared dark and soot-colored. We recorded the idle quality numbers from the EMS analyzer and then installed stock heat range plugs that were two steps hotter and were of a single-platinum configuration. The engine did not appear to misfire with the cold plugs.
The change to the hotter plugs improved the idle quality only slightly by reducing the unburned hydrocarbon (HC) count along with a slight improvement in CO2 which is an indicator of combustion efficiency. So thecombination of increasing the heat range, and the platinum center electrode contributed to making the engine idle better, cleaner, and more efficiently.
We’ve also run across opinions claiming that a copper-core plug will somehow burn off carbon deposits more efficiently than fine-wire plugs. This is also incorrect and relates back to our earlier point that a fine-wire electrode has no impact on heat range. Spark plugs with a hotter heat range will burn off carbon deposits more easily than a colder plug.
“As an example, an Autolite copper 105 versus an XP Iridium 105 will have identical ceramic temperatures and the carbon burn off will be the same,” says Reeves.

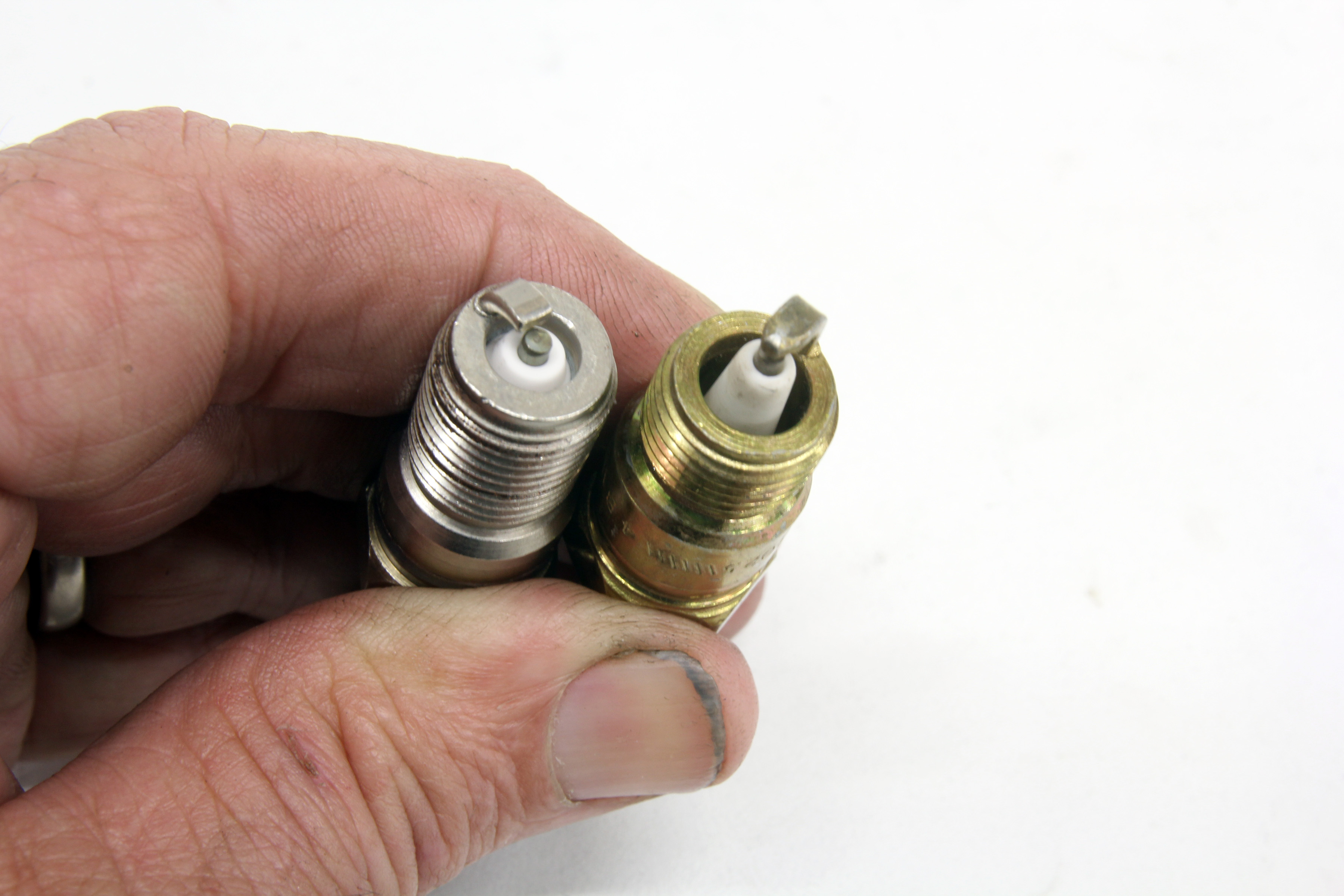

The way an engine is used has a big effect on choosing the proper heat range. An example might be a dual purpose street/drag car, especially if it uses a power-adder like nitrous or supercharging. For subdued street driving, a standard heat range, extended-nose spark plug would be a great choice, but only if the engine is not called upon to make maximum power. That’s walking a very fine line.
Reeves makes an excellent point. “I wouldn’t want someone to run a projected tip, standard automotive plug in a 1,200 horsepower, 32 psi LS engine because it’s street-driven.”
For high-load, max-cylinder-temperature track excursions, a colder, standard nose or even surface gap plug is the wisest choice.
As power from late model engines continues to escalate, selecting a spark plug that will live and not contribute to problems becomes a much more difficult assignment. High horsepower engines and especially supercharged, nitrous, and turbocharged powerplants making four-digit horsepower are increasingly susceptible to pre-ignition. For tuning these engines, it’s best to start with a very cold plug with a short ground electrode. Ground electrode length is not a function of heat range. So for power-adder applications, its best to avoid the projected nose spark plugs, keeping the ground strap length short.
Crossing The Gap

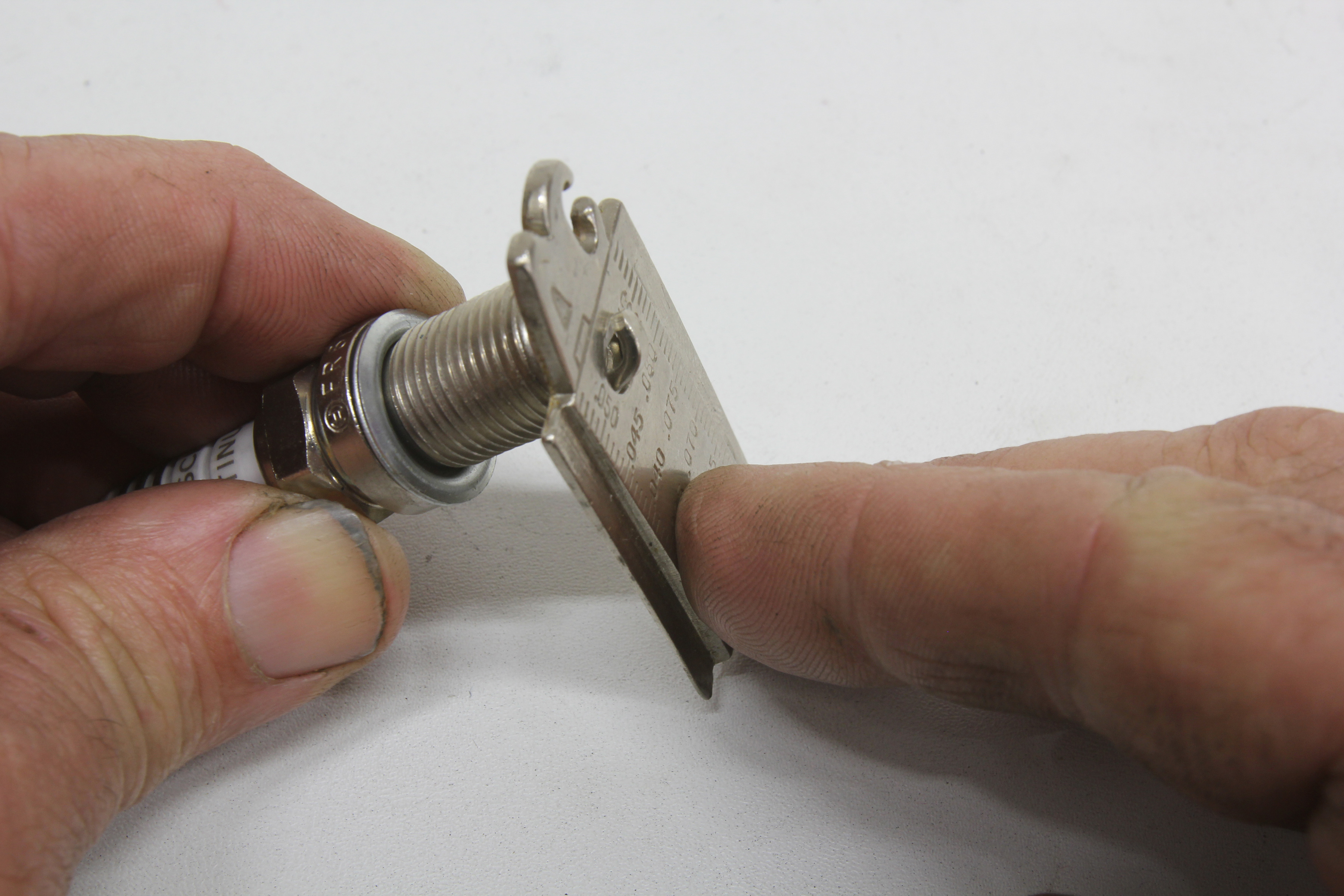

While spark plug gap does not have a direct effect on timing, excessive gap in a power adder application can easily cause engine misfire. While a standard gap of 0.035-inch works well for naturally-aspirated engines, if the plug wires are in good shape and the ignition is strong enough, many naturally-aspirated engines might benefit from a slightly wider gap of 0.045 to perhaps 0.050-inch.
Conversely, supercharged, turbocharged or nitrous applications will demand a narrower plug gap of 0.025 to 0.030-inch.

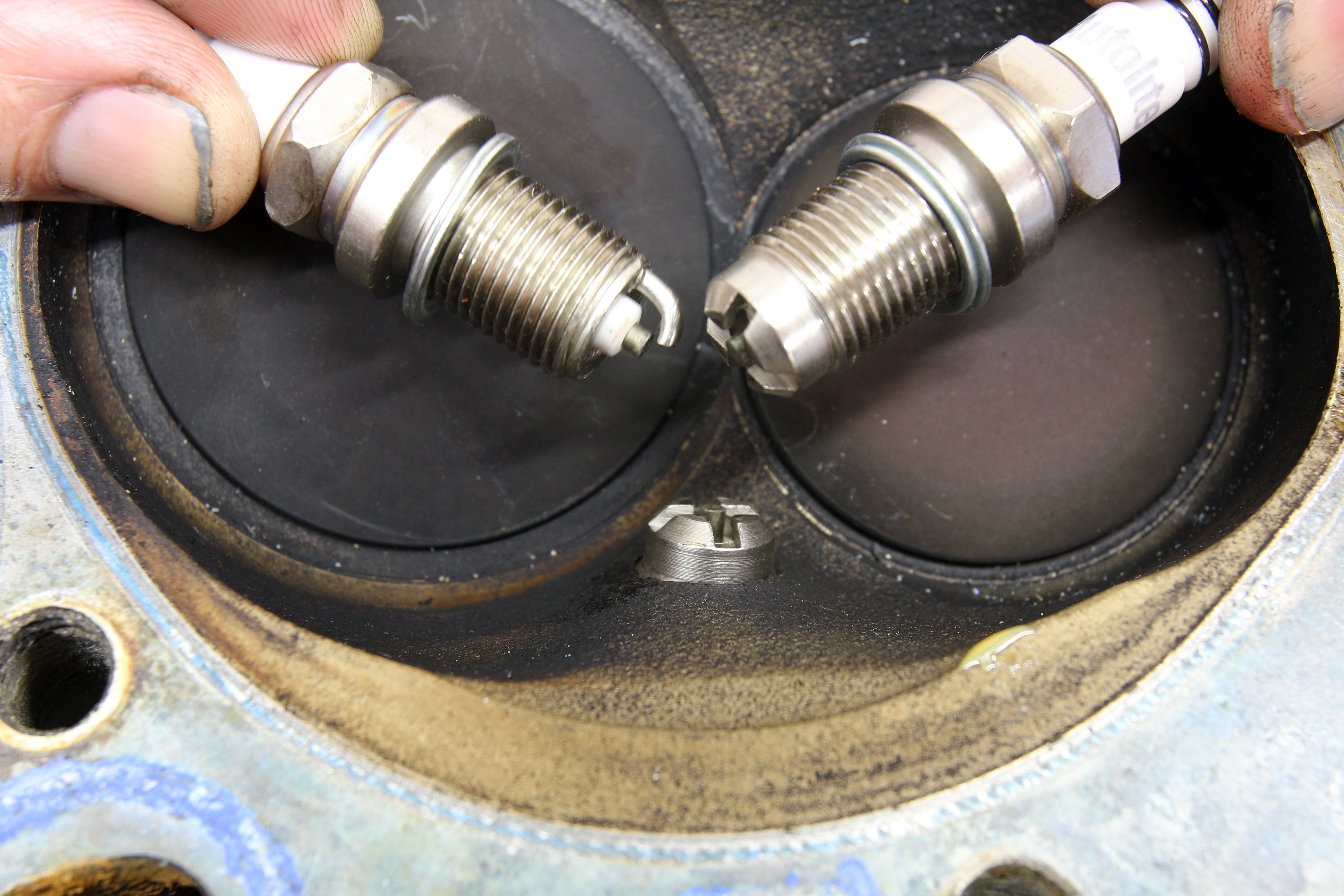

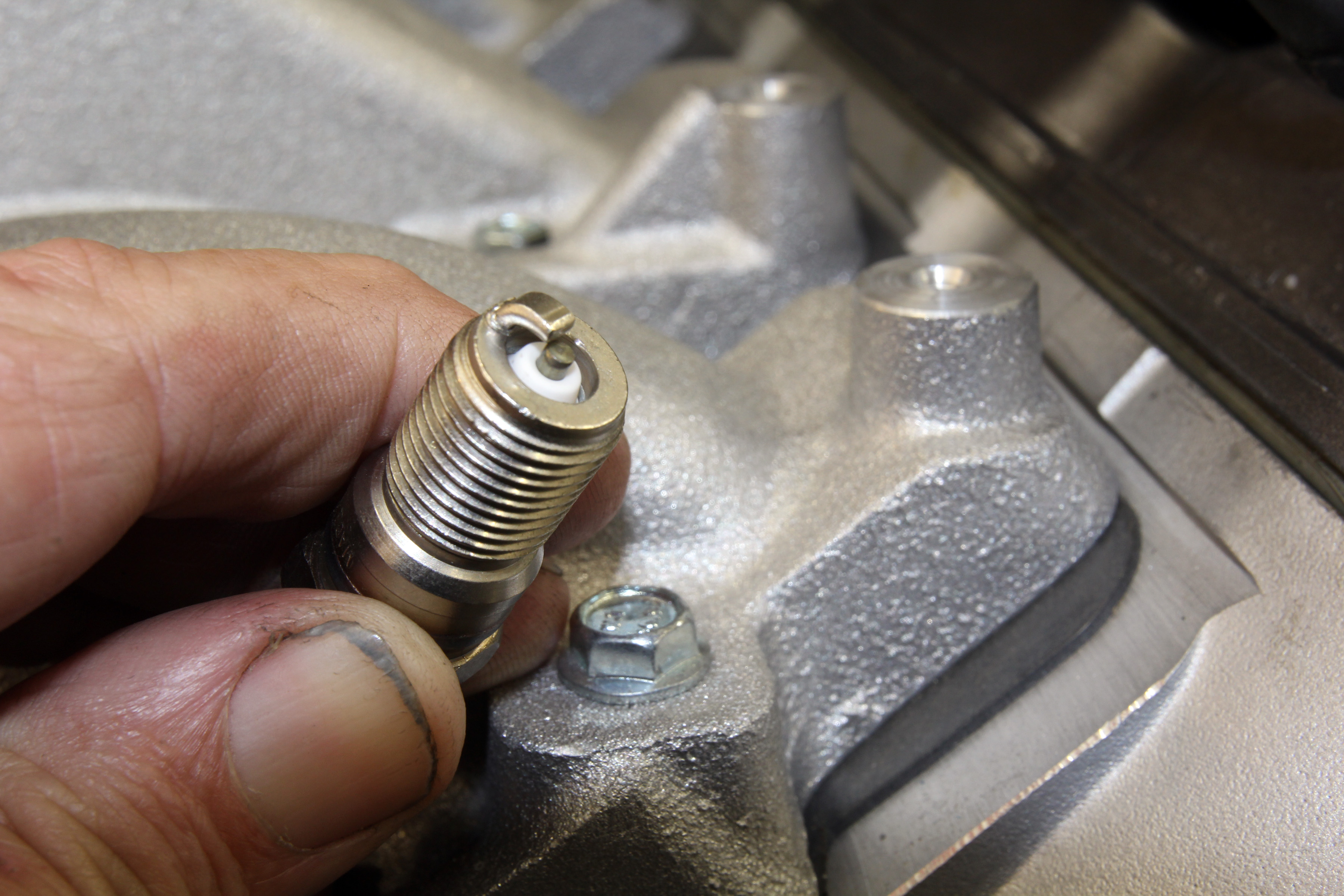

Another idea that can offer potential advantages is a cut-back ground electrode where the ground strap is cut or filed to uncover the center electrode. With less mass in the strap, it does not remove as much heat from the initial flame kernel. As the ground strap length increases, this adds more mass and can slow the growth of the initial flame kernel. Cut back ground straps are also useful in applications where a standard strap may interfere with the piston dome.

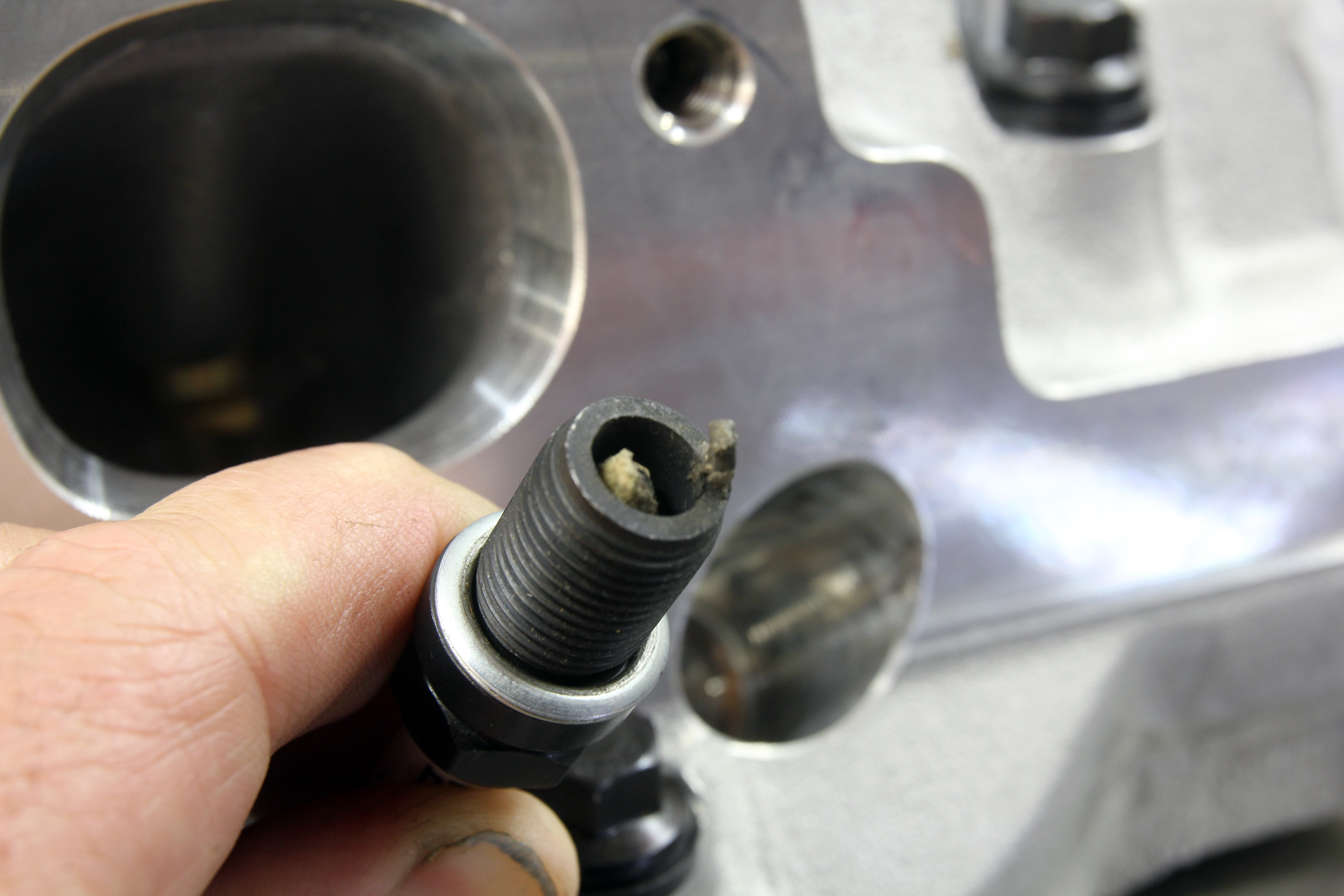

The disadvantage is this will concentrate the spark on one side of the center electrode. With a traditional copper-core plug, the center electrode will wear much more quickly and the gap will increase. This is a trick that is perhaps best left to short-duration race engines. Another option for power-adder applications is to choose a surface-gap plug. Autolite offers the X-series of plugs that has slots cut in the end of the plug, creating sharp edges that make it easier for the spark to jump the gap.

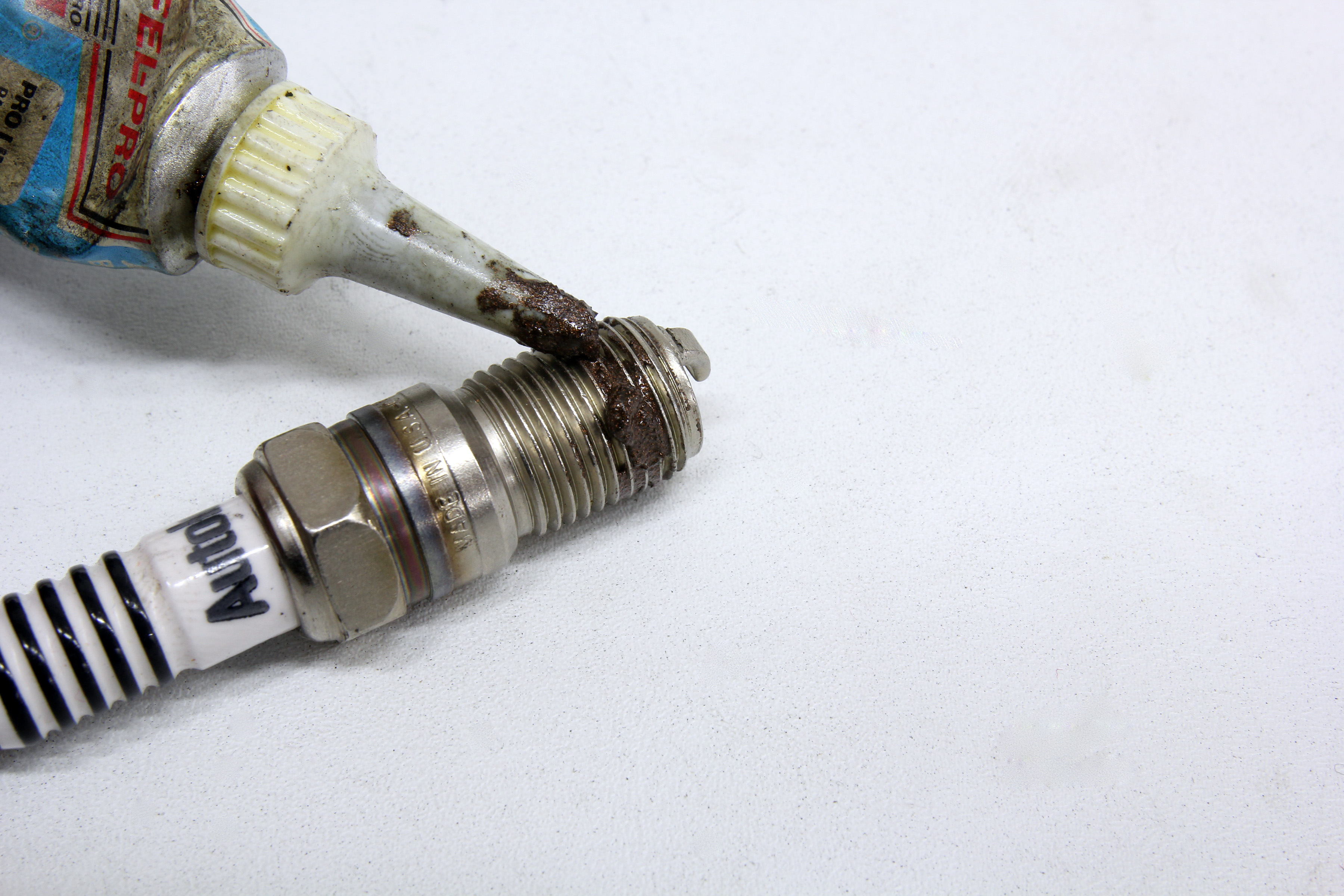

There is much more material regarding spark plug design and usage than we can cover here in one story. Even with late-model fuel injection and data logging, reading a spark plug is still a viable art that is an important part of tuning. Hopefully we’ve managed to dispel a few myths and provide facts that you can use to make your next tuning decisions a bit more accurate.
