Preserving a balance between exotic looks and streetable hosepower is now much easier with nostalgia-themed engine components, electronic fuel injection and advanced self-tuning programming controls.
When aftermarket EFI first became practical for performance street engines, builders started adapting the injectors to vintage Hilborn, Crower and Enderle injector manifolds to achieve the gasser look with eight tall stacks of velocity tubes. Others played around with integrating EFI into old Weber down- and side-draft carbs to emulate a Sebring or LeMans road-race engine.
The objective was simply to add drivability to a classic engine induction, and that was the assignment given to Alan Bessant of BEP Performance in Anaheim, California. The customer wanted a spirited Ford FE big-block to power a heavily customized 1961 Ford Thunderbird convertible.
Street manners
“The owner wanted to be able to drive to Las Vegas at any time,” explains Bessant. “He wanted all the accessories on the front drive. He didn’t want noise from the valvetrain since he also had plans for a premium stereo system in the car.”

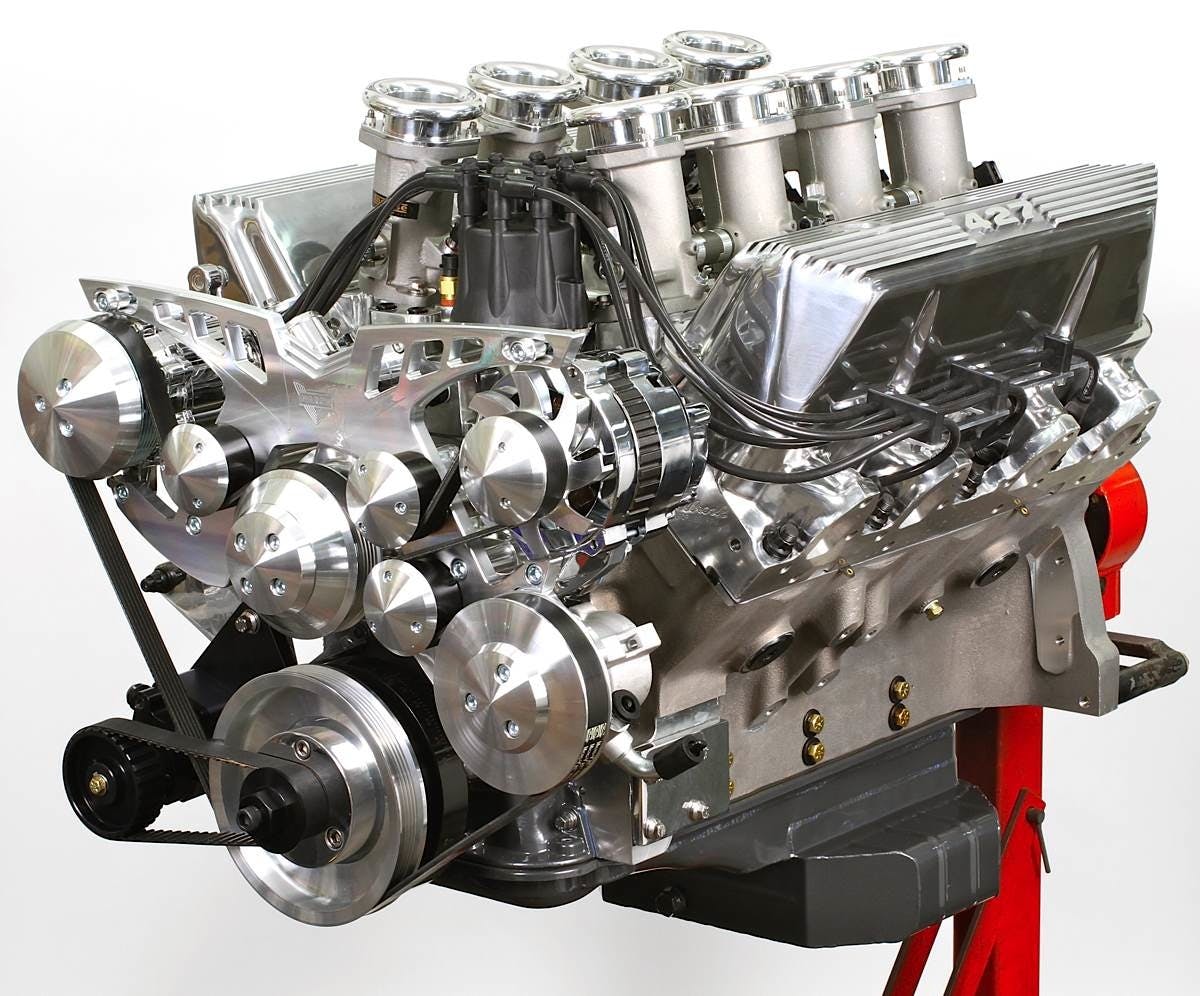

Focal point for the 482 ci Ford big-block would be the new Inglese 8-stack EFI manifold. Boasting the classic hot-rod look of a Weber 4×2 intake manifold, the Inglese hardware is supported by the EZ-EFI fuel injection system from FAST, resulting in an easy-to-install induction setup that delivers the nostalgic appearance of ‘60s Cobra big-block engines.
undefined
The Weber look

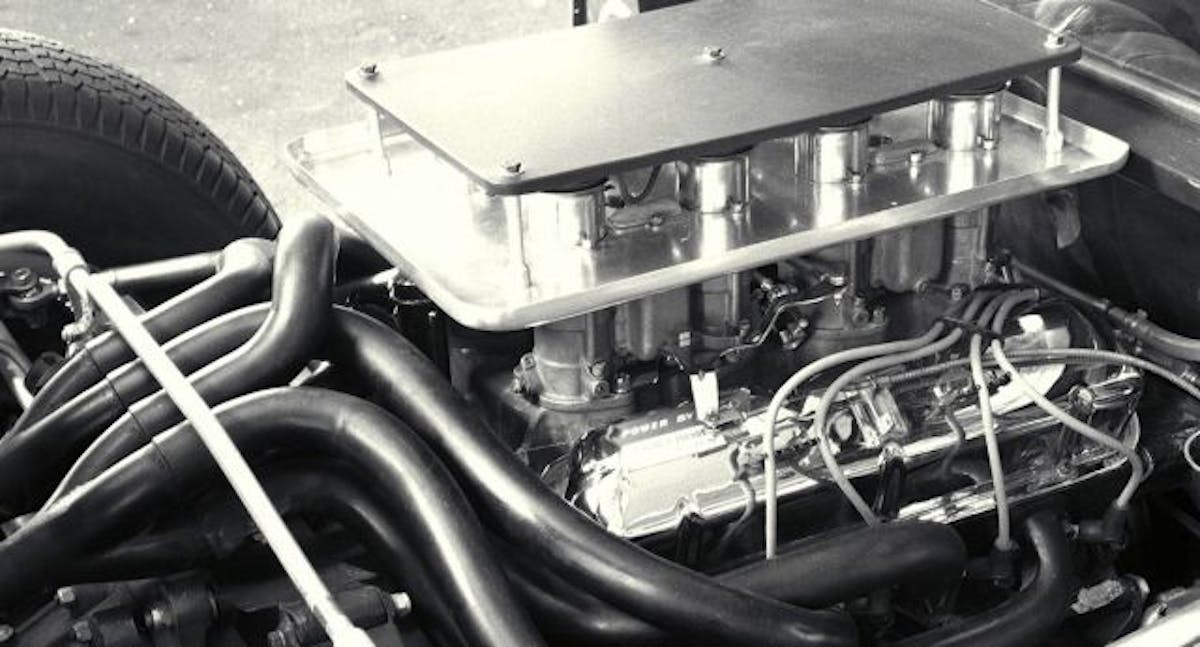

Weber carburetors provided the signature look to the Ford race engines of ’60s and ’70s, and Inglese worked with Weber on the Shelby Cobra and Ford GT-40s that ran on the great road-race circuits of the day. Today, Inglese emulates the classic Weber look with its series of 8-Stack manifolds and fuel-injection setups.The Inglese manifold features 58mm throttle bodies mounted at the traditional 10-degree angle for improved hood clearance. The velocity stacks have integrated screens to prevent damaging debris from entering the engine. There’s a built-in plenum in the manifold to allow vacuum accessories and improved speed-density EFI operation, if that’s the chosen style of fuel injection. Also included are aircraft-quality hex-aluminum linkage and low-profile fuel rails.

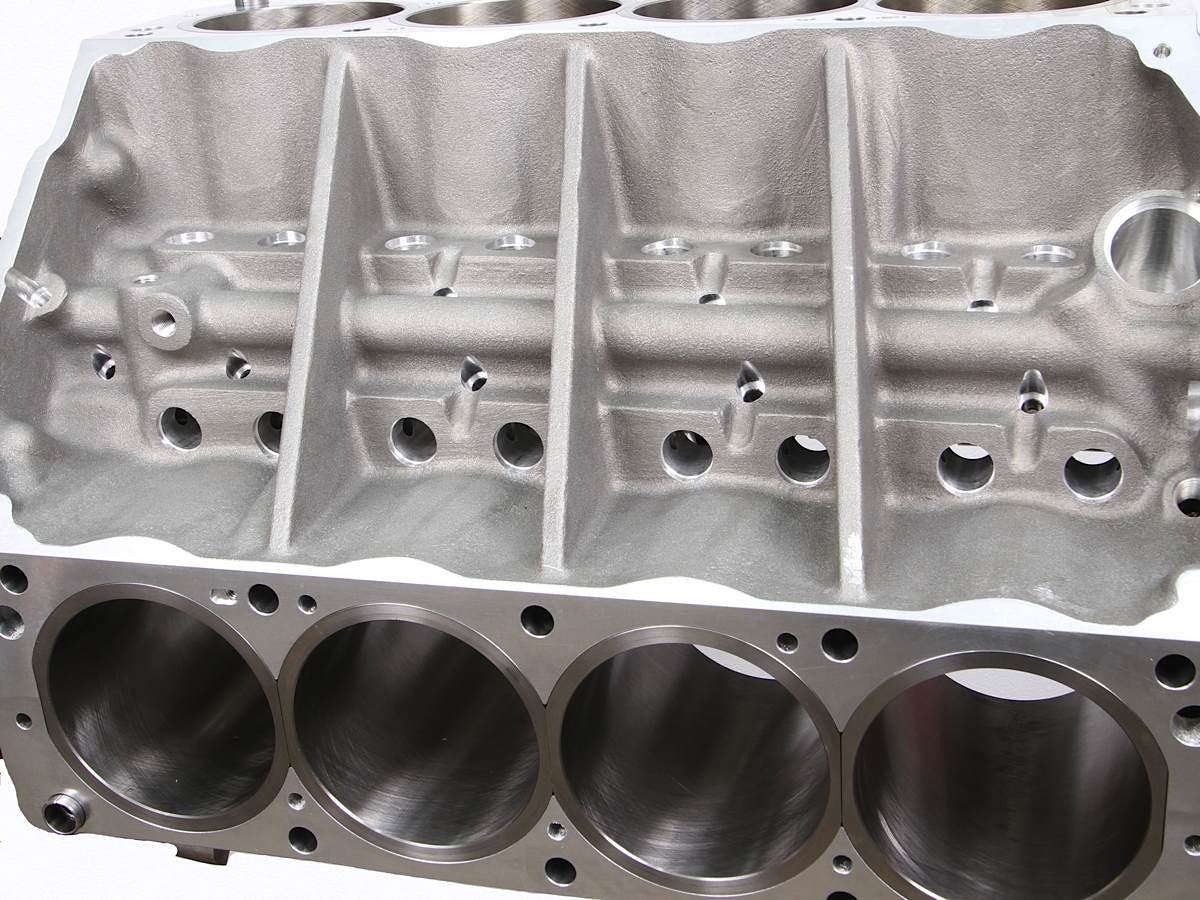

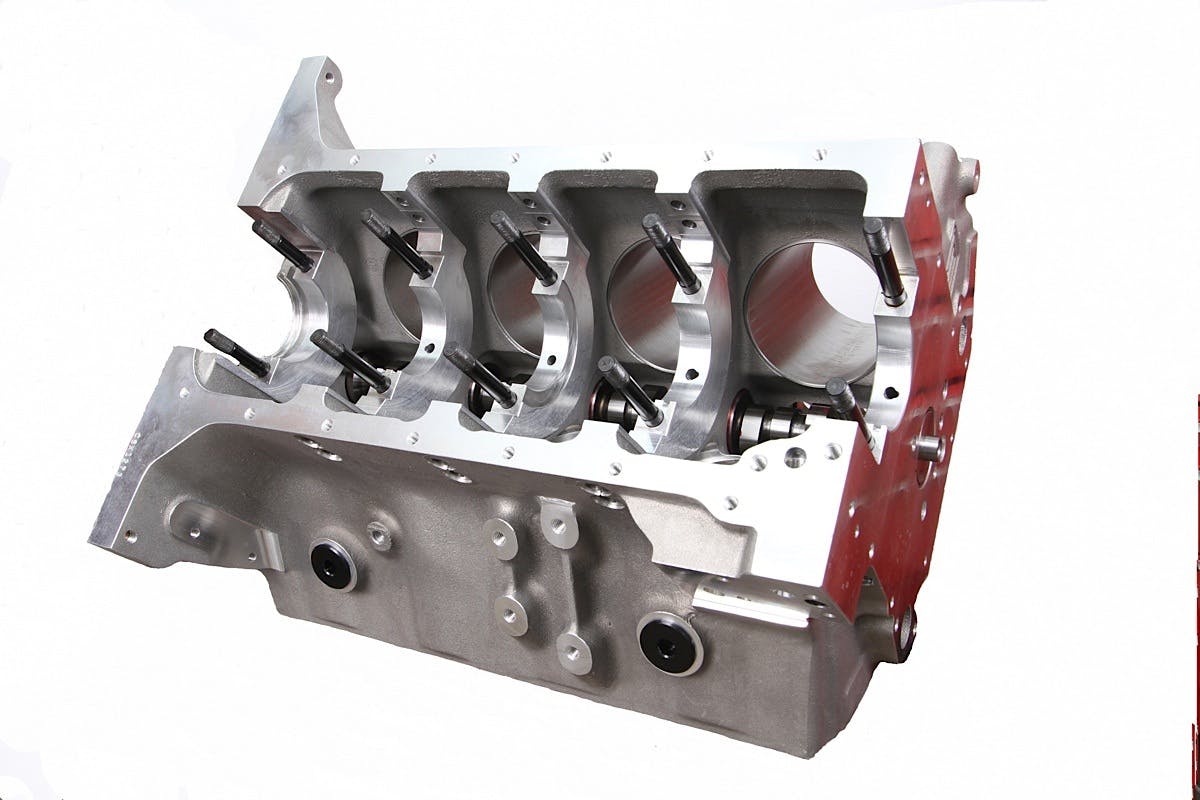

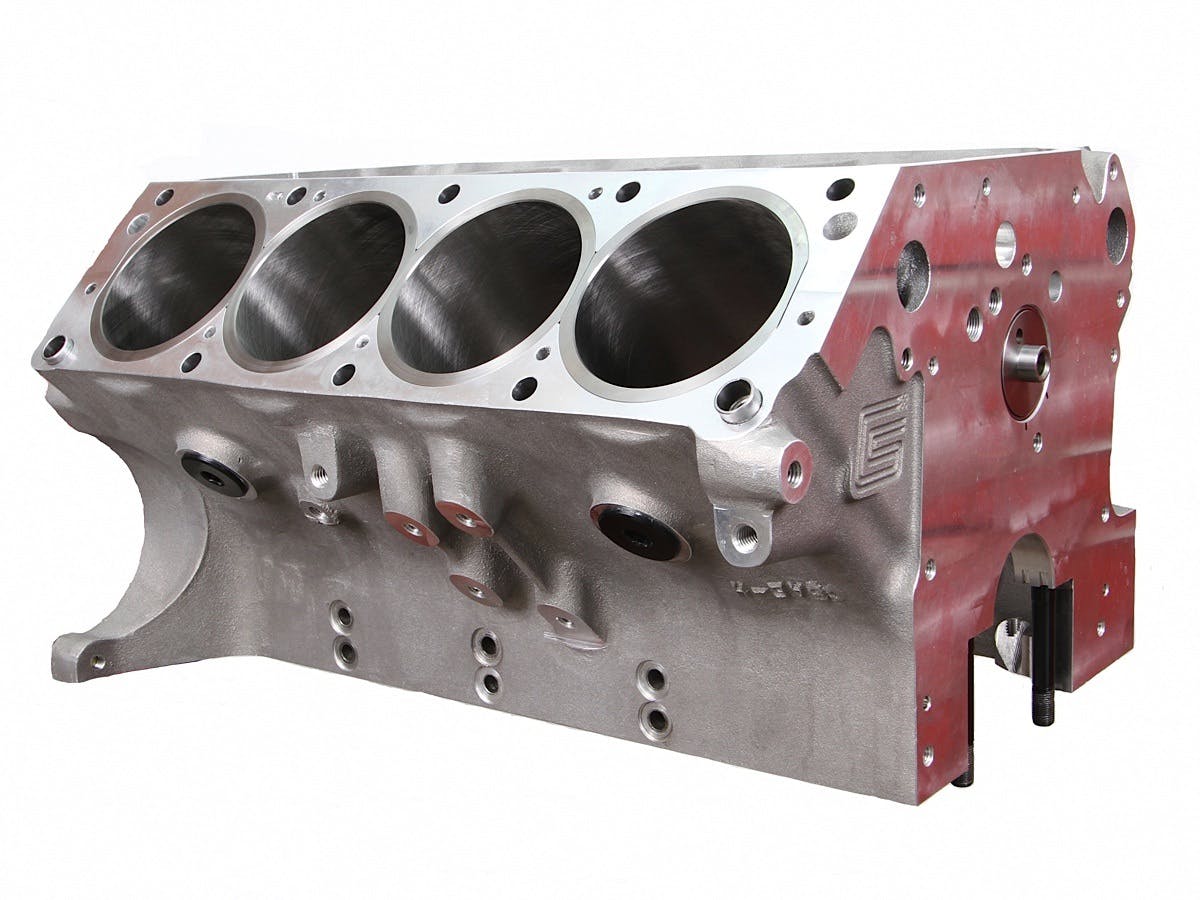

An aftermarket iron block was first chosen as the engine’s foundation, then the owner discovered the all-aluminum FE replacement from Carrol Shelby Engine Co. Although a bit pricey, it comes fully CNC machined and retains all original mounting bosses and bellhousing bolt pattern. Overall the block is 45 percent lighter than a standard iron block, yet is stronger with reinforcing webs in the lifter valley and thick oil-pan rails. Other features include .750-inch deck, priority main oiling and billet-steel main caps.

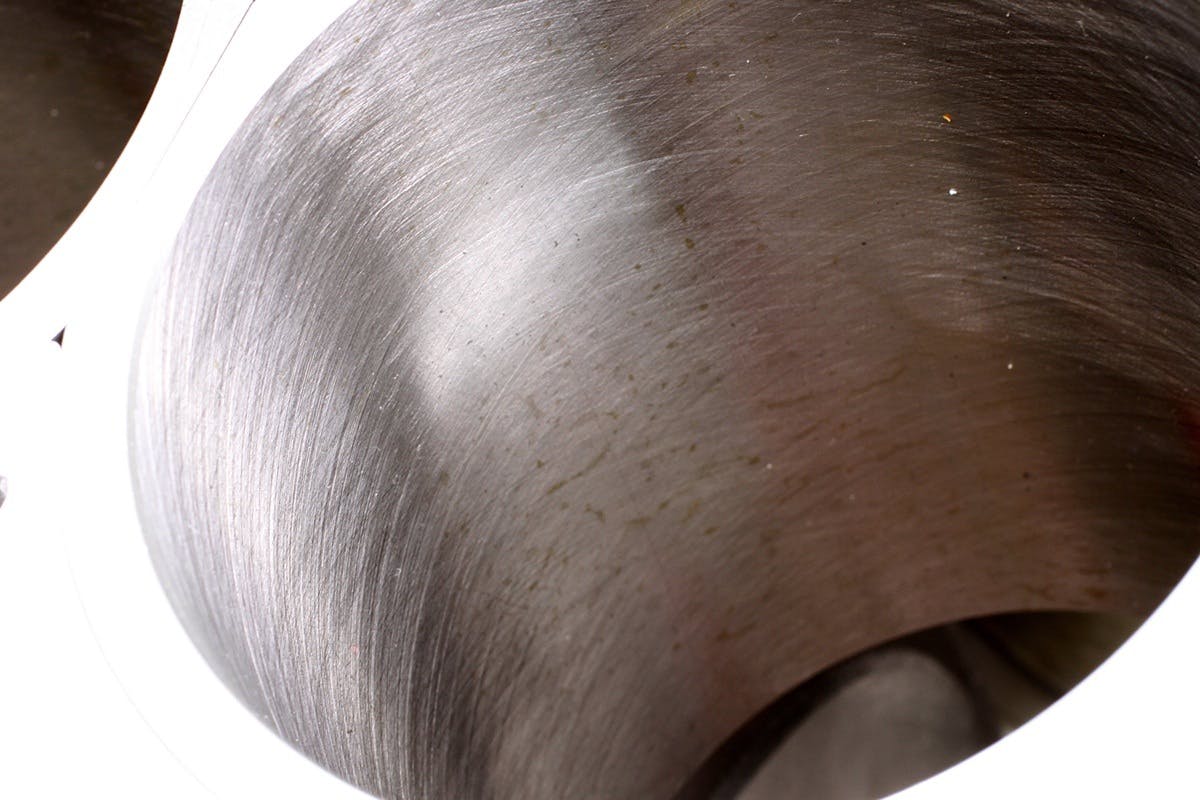

“We didn’t have do much to the block,” says Bessant. “We cleaned up the drainback holes and torque-plate honed to 4.250 bore.”
A little aggressive on the compression ratio

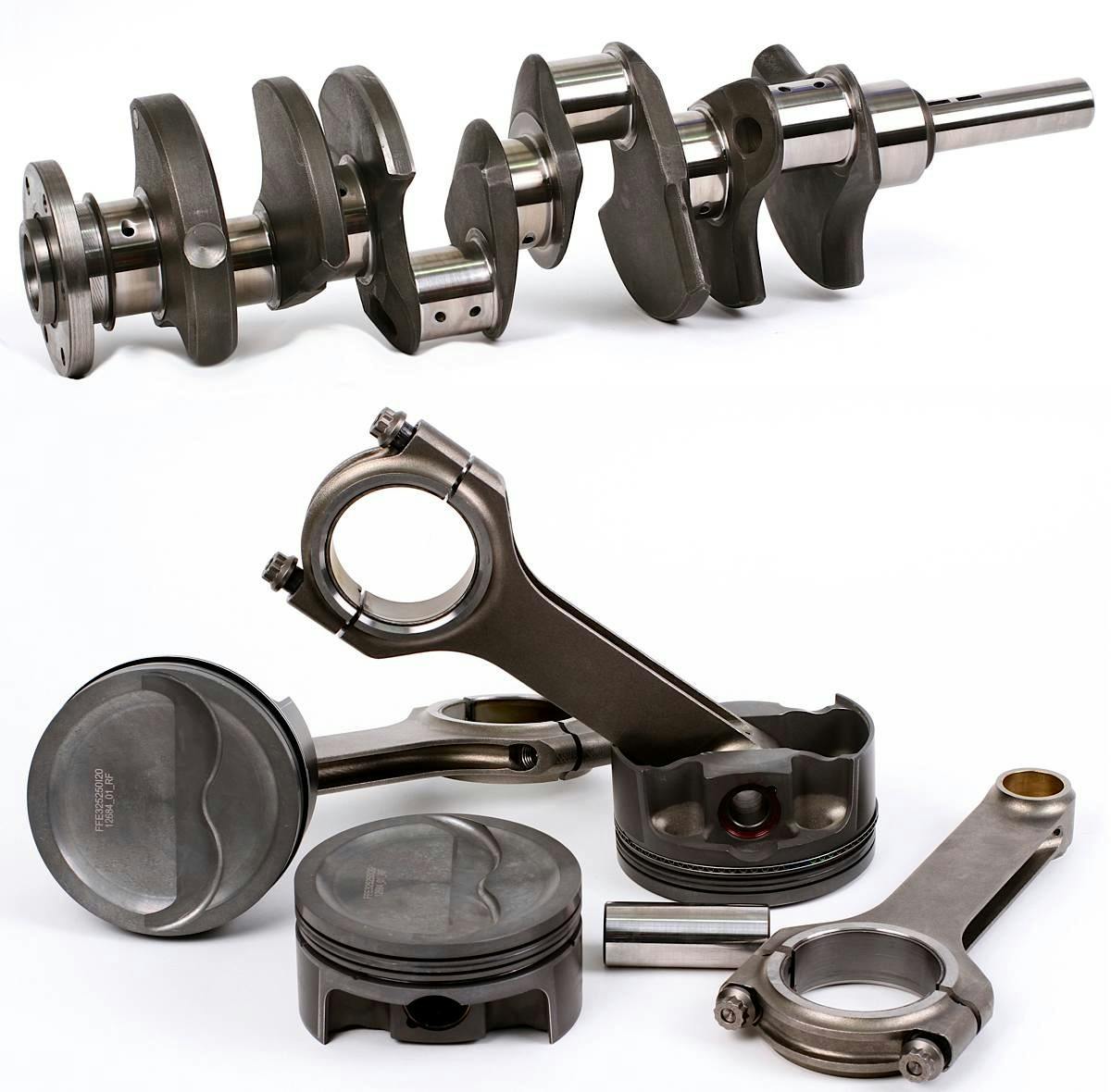

A Scat forged-steel crankshaft with a 4.250-inch stroke is cradled by Clevite bearings (about .0025-.0027 clearance). Scat 6.7-inch H-beam steel rods (with Chevy-sized 2.2-inch journals) are connected to phosphate-coated Mahle pistons cut for 1.5mm, 1.5mm and 3mm rings. The entire rotating assembly was balanced at Revco Precision. Compression ratio is slightly aggressive side at 10.5:1.
“We wanted to run it on pump fuel without a problem,” says Bessant. “The aluminum block and heads also let us set a little higher static compression.”
The bottom side of the engine proved the most difficult step in the build. The ’61 T-bird received a rack-and-pinion steering and Mustang II suspension upgrade, so a stock front-sump oil pan wouldn’t fit. BEP modified a Milodon pan by sectioning it about one inch below the pan rail. Rotating the sump to the rear and a little welding later, the pan was a perfect fit. But there’s no provision for a rear-mount oil pump as the distributor is up front.
“So we just went to an external Stock Car Products oil pump,” says Bessant, noting that custom brackets had to the fabricated to mount the pump. “There’s an internal oil pickup that we welded to the inside of the pan.”
Building the top end
A -12 line and scavenge filter are used on the scavenge side of the pump. A -10AN line will be used on the pressure side from the pump to a remote oil filter and then to a feed line in the rear of the block. An oil-filter block-off plate was fabricated to cover up the stock location.

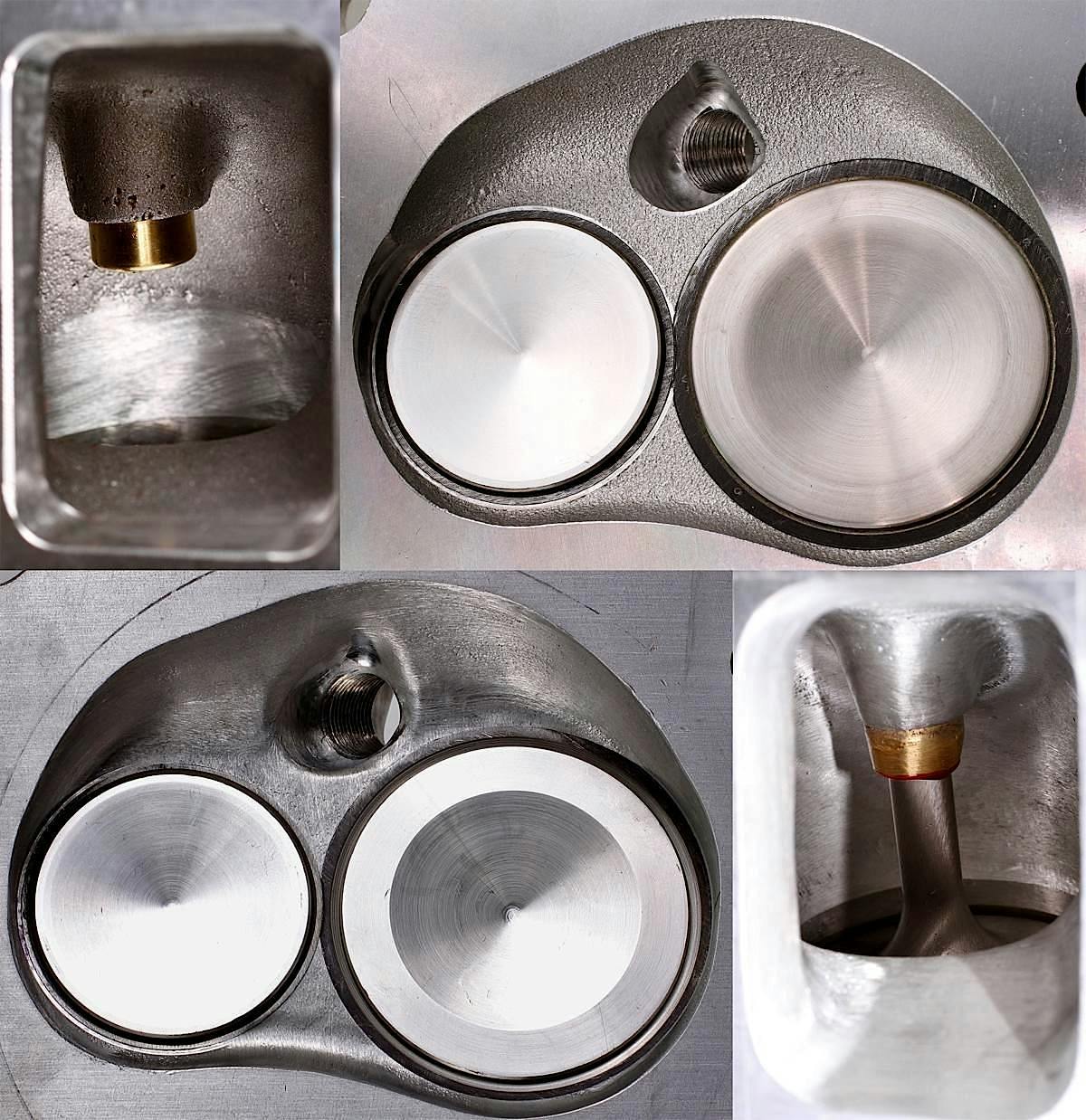

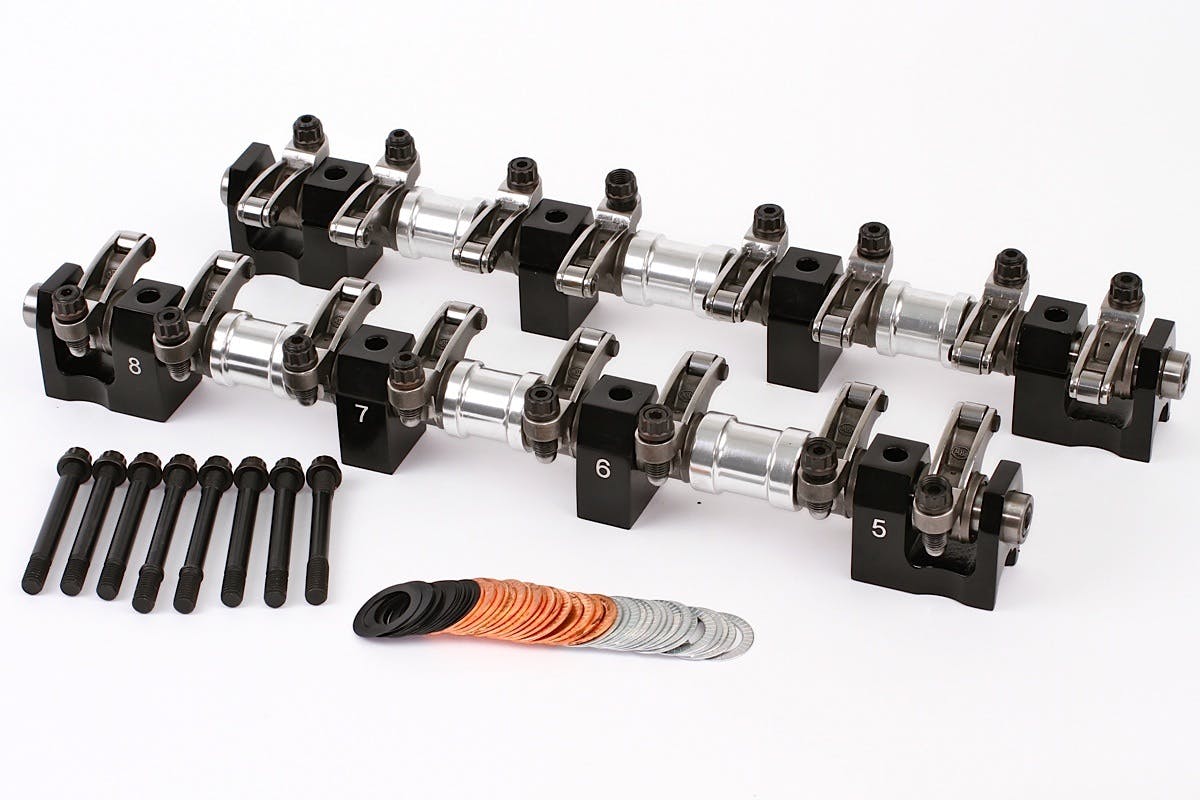

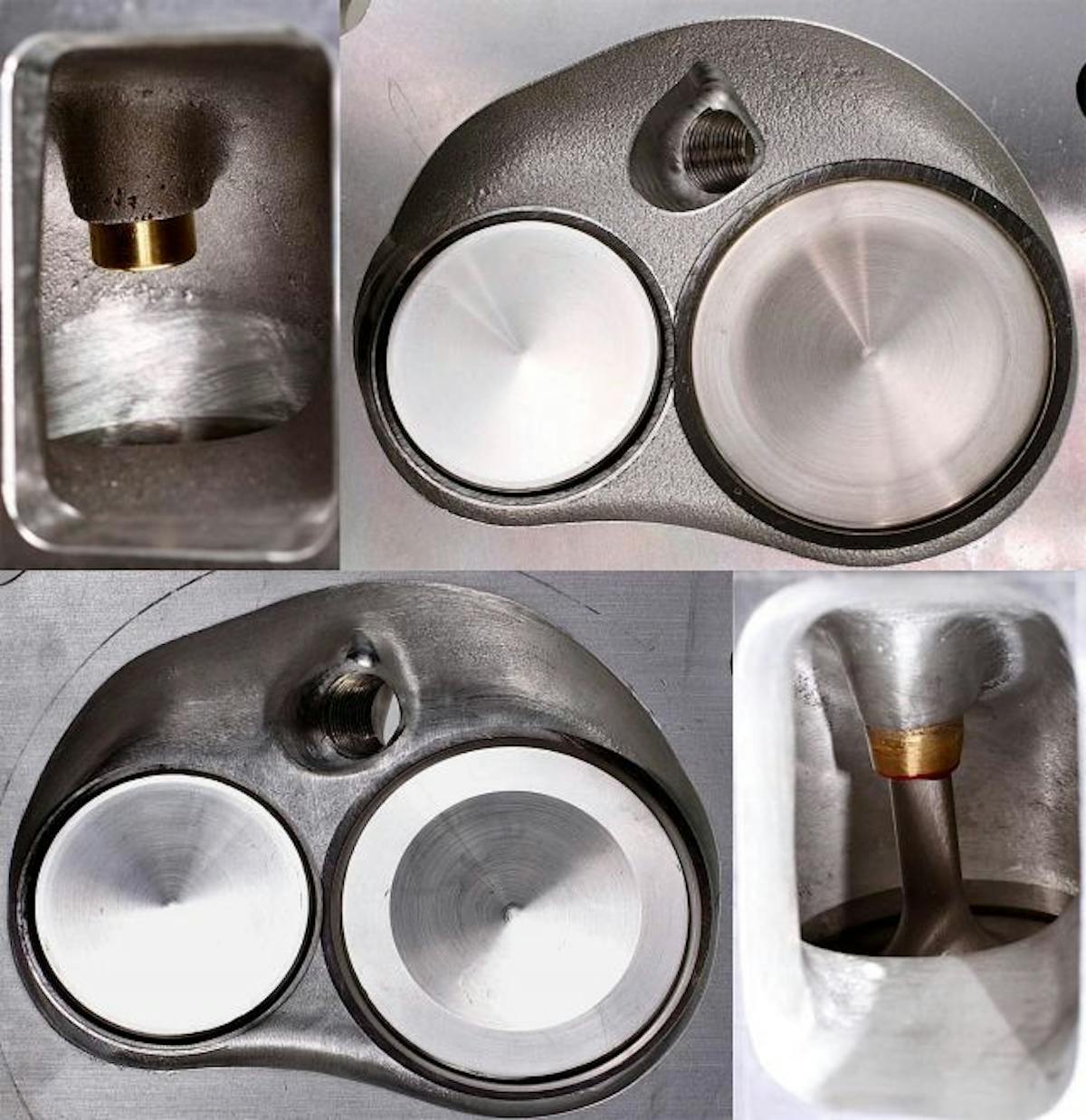

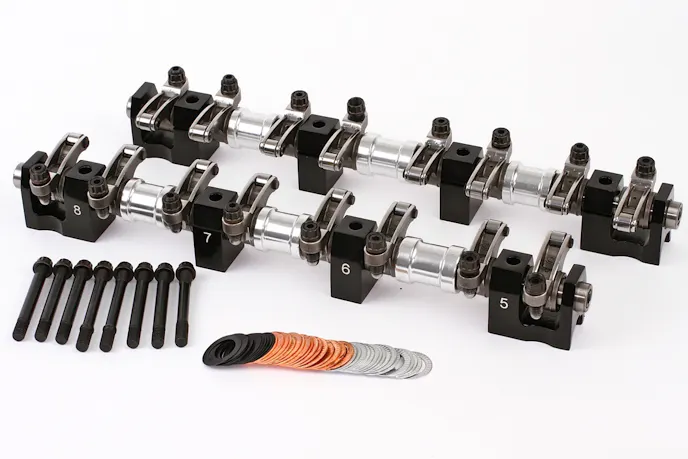

The Edelbrock Performer RPM cylinder heads were given a “Stage II” hand-porting at BEP, then fitted with Manley valves (2.09/1.66), Comp Cams dual 1.550-inch valve springs (140 lbs on the seat, 320 lbs open) and PRW 1.7:1 rocker arms. The heads were also polished to match the other bling on the engine.

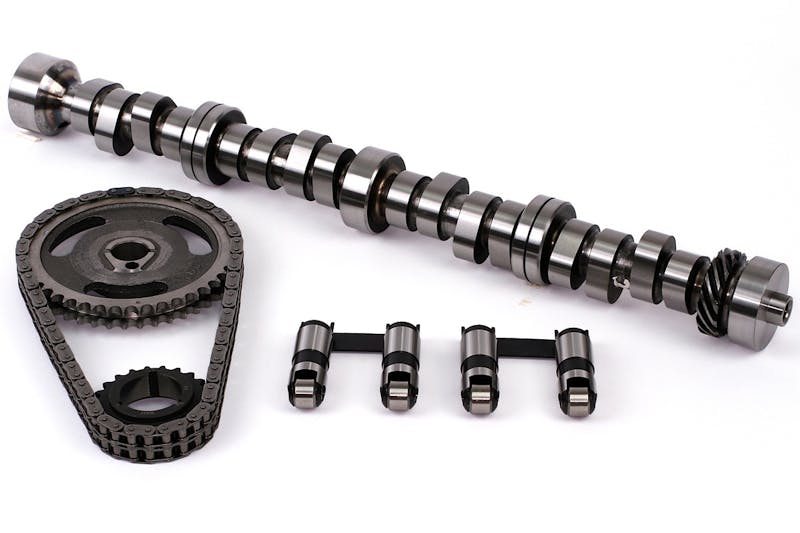

It fired right up and continued to make air-fuel adjustments.<br /> — Alan BessantThe Comp hydraulic roller camshaft is ground to 230/236 duration at .050 with .521/.532 lift and 112 degrees lobe separation. It was installed on a 108 intake centerline.

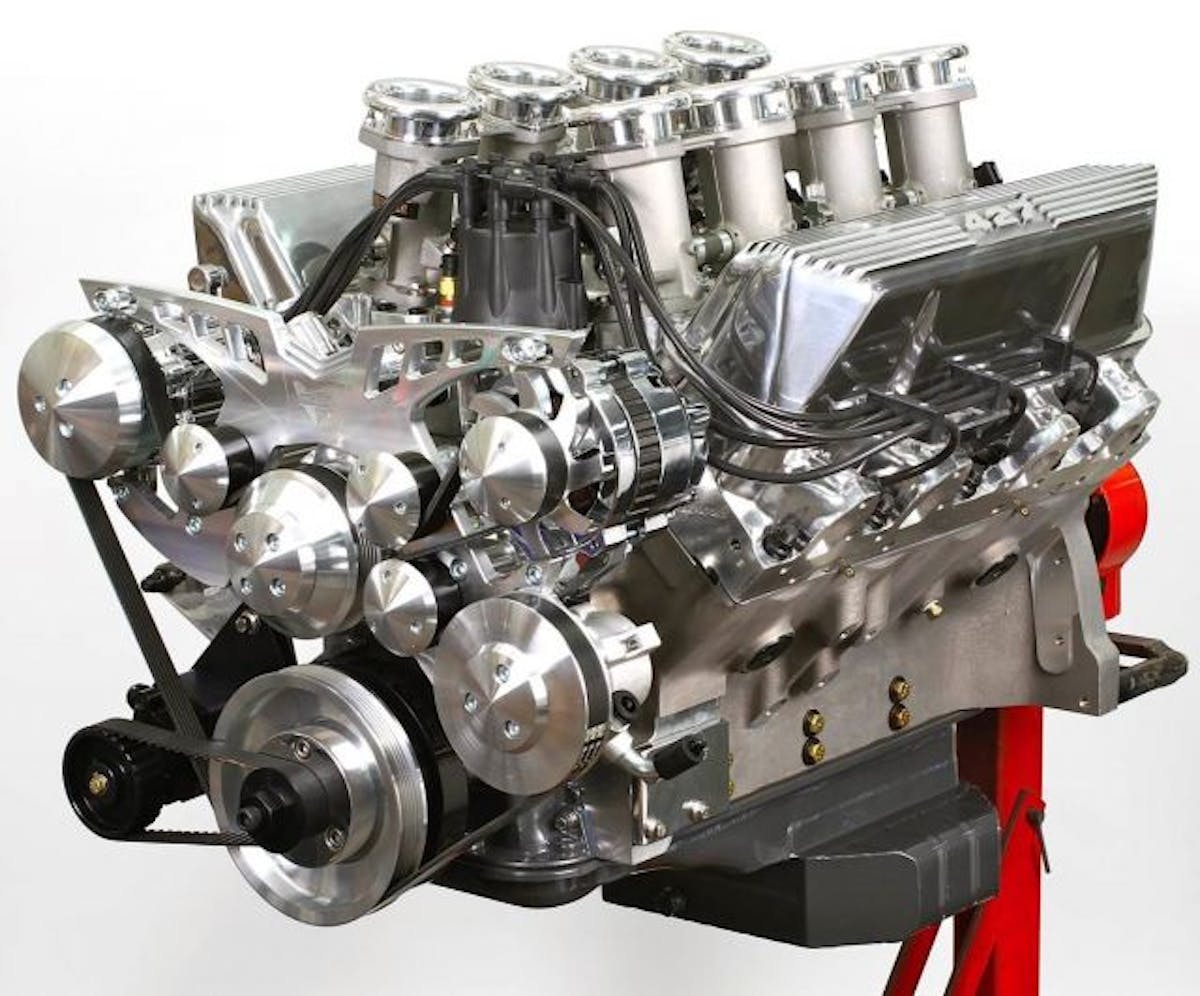

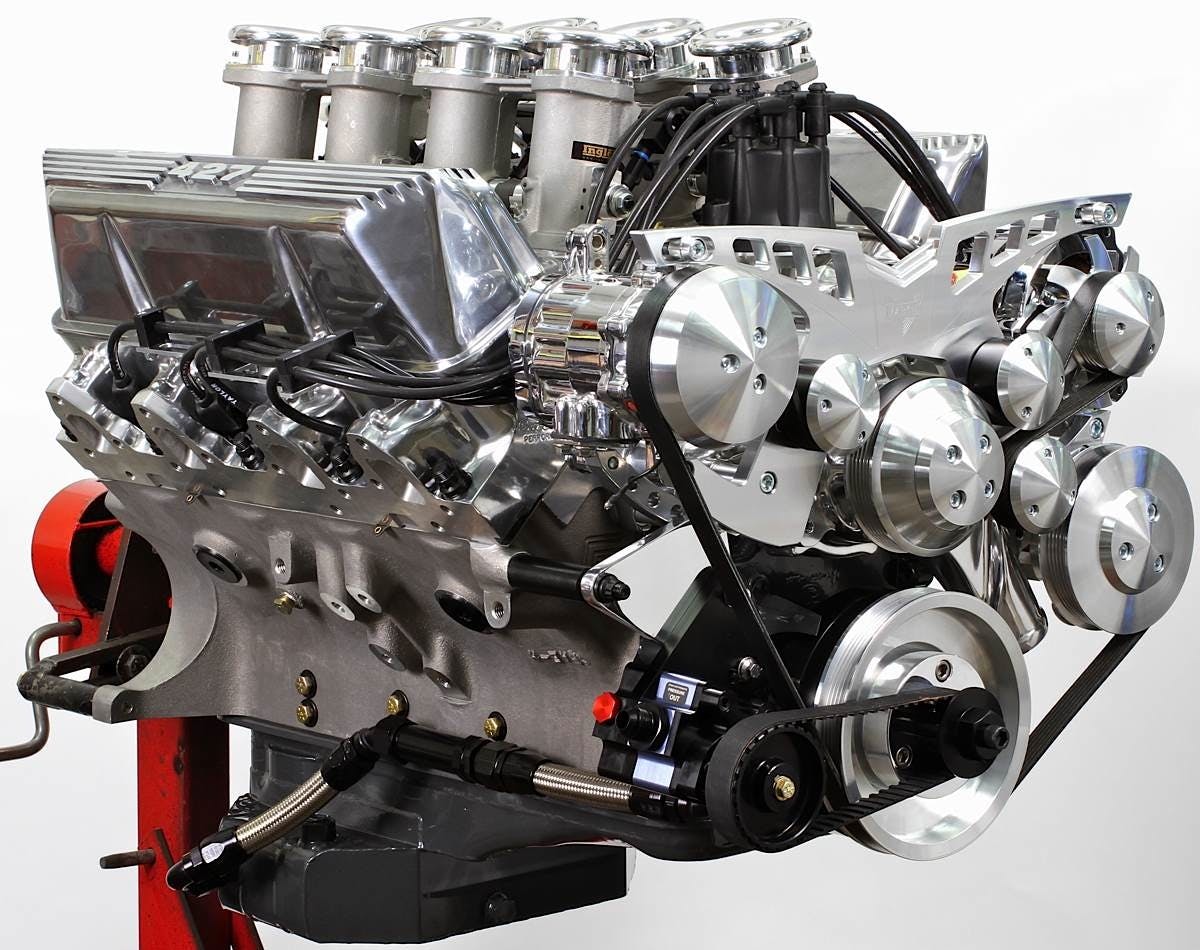

Finishing up the long block are ARP hardware, Cometic gaskets, Cloyes double-roller timing chain, Edelbrock water pump and PRW 7-inch damper. The Inglese induction was bolted on after the stacks were sent out for polishing and clear coating. Final assembly included a MSD distributor, Racing Power Company valve covers and fully polished March accessory drive.

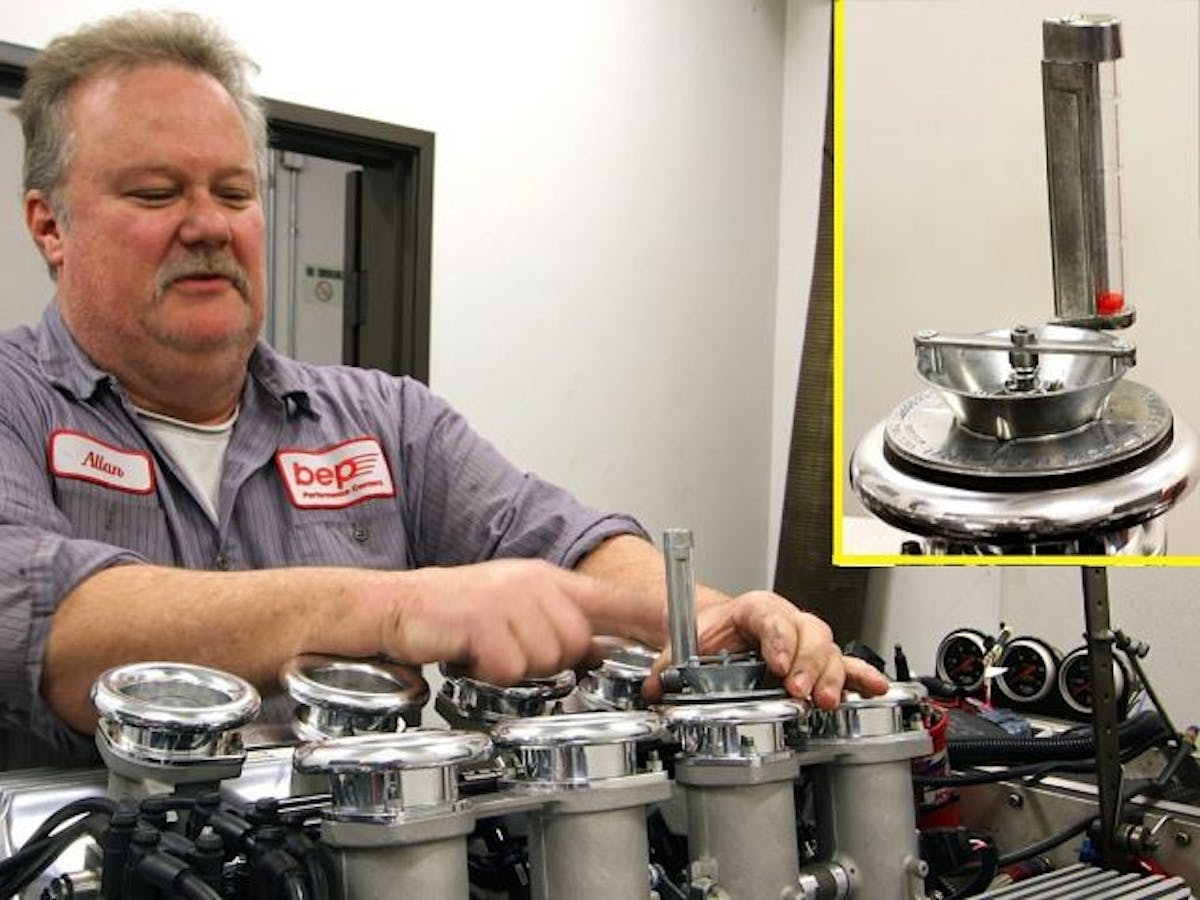

Even with the close tolerances from Inglese, the 8-Stack throttle bodies have to be dialed in and sychronized. BEP first used a feeler gauge to adjust the throttle plates, according to instructions, then utilized a UniSync tool to fine-tune the air bleeds. This tool helps balance the airflow between stacks by measuring the flow with a movable float in a pressure tube.
The initial firing was uneventful as BEP programmed the necessary information into the Setup Wizard on the EZ-EFI controller. Idle was set at 850 rpm.
“Working with the FAST system was awesome,” says Bessant. “It fired right up and continued to make air-fuel adjustments as engine warmed up.”

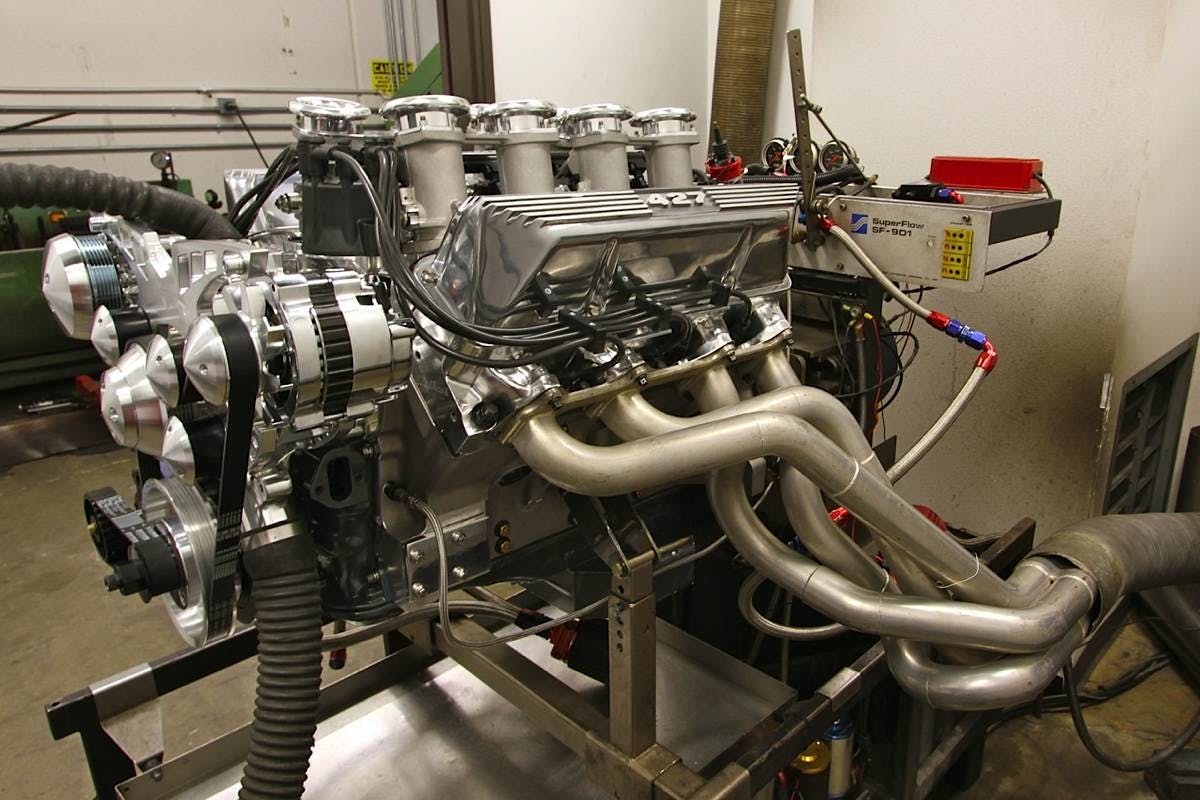

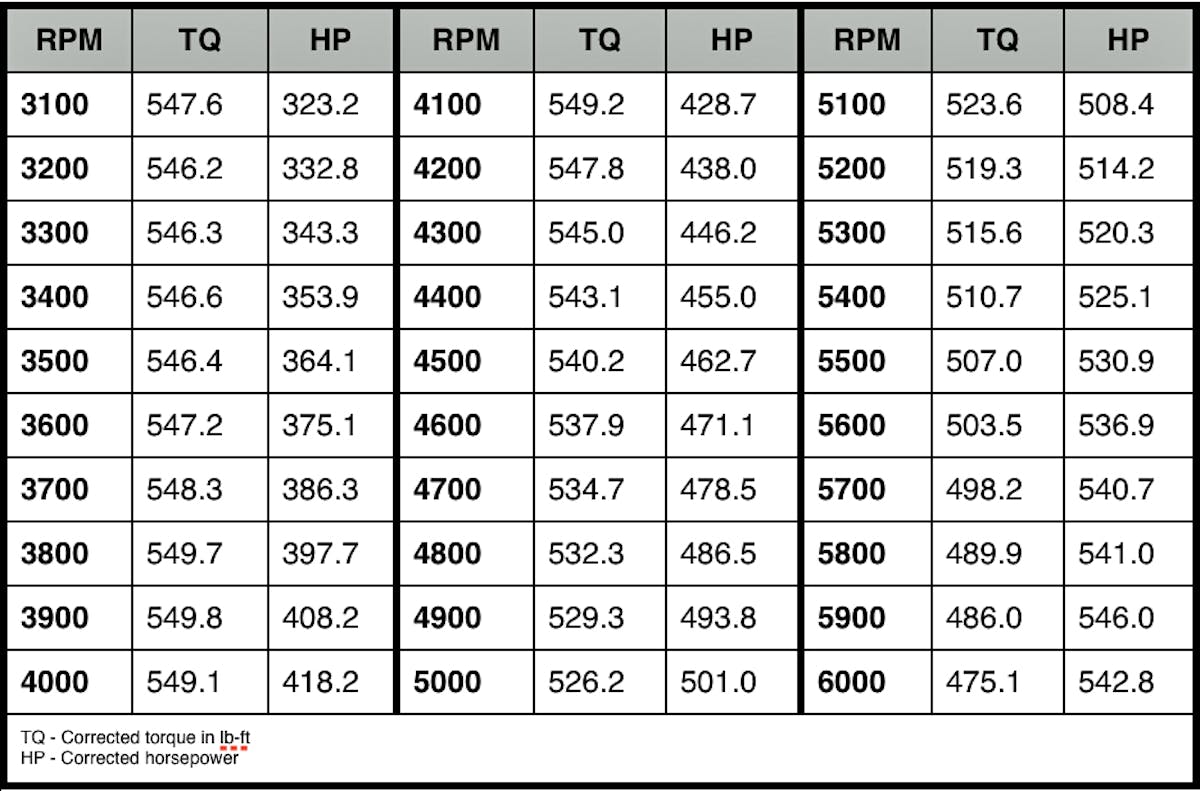

Best pull on the Superflow dyno was 546 horsepower at 5,900 rpm, and peak torque was measured at 547 lb-ft at 3,100 rpm. Bessant did note that the EZ-EFI controller doesn’t allow immediate air-fuel ratio changes at wide-open throttle. To help protect against drastic changes that could hurt the engine, the controller makes gradual changes following any adjustments to the basic calibrations. BEP ended up at 12.5:1 on the last pull.
“The cam is really mild,” says Bessant. “But it’ll pull 550 lb-ft of torque below 3,000 rpm all day long.”
BEP toyed with the ignition timing, building torque with 34-35 degrees and then losing horsepower at 38 degrees.
“Thirty-six degrees seemed to the sweet spot,” adds Bessant.
The engine met all the customer expectations with its combination of nostalgic flair and low-maintenance horsepower that will fit nicely in a customized ’60s vehicle.
