SEMA 2013: Trick Flows Shows Off New LS7 and Big-block Heads

Trick Flow Specialties is teaming with Stainless Works and Proform to offer headers and carburetors, respectively, giving the cylinder head specialist the option of offering customers ready-to-bolt-on packages.

“We now have complete top-end solutions,” says Mike Downs, general manager at Trick Flow. “Think of it as completing the air-in, air-out flow.

Image/s missing.

The carbs are available in a variety of sizes and applications, including full race and street performance. The headers are made from CNC mandrel-bent 304L stainless steel tubing that is fully TIG-welded to 3/8-inch laser-cut flanges. Headers are designed for late-model vehicles, including turbo applications.

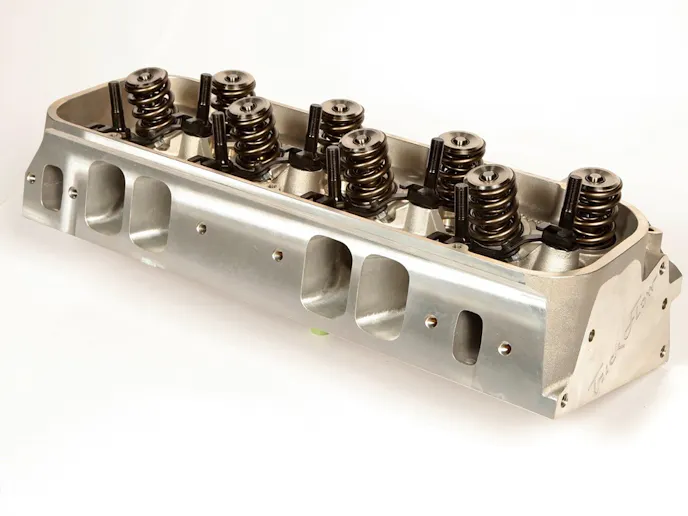

On the cylinder head front, Trick Flow showed off a CNC-ported version of its top big-block Chevy offering and also introduced a GenX LS7 head.

“Previously we had only the as-cast version of the big-block head,” explains Downs. “We felt there was a real need to compete with a CNC-ported head. It’s for bigger engines in Top Sportsman and other classes.”

Called the Powerport 365, the heads feature a high-resolution finish for maximum airflow and come fully assembled with premium valvetrain components.

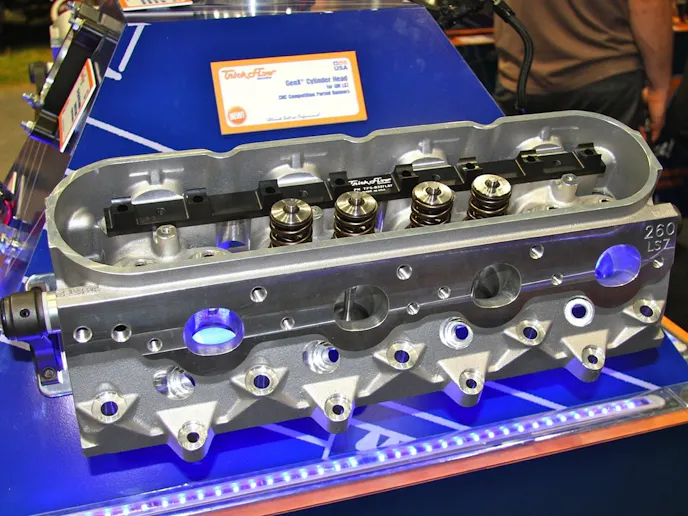

For LS engines, Trick Flow if offering the GenX 260 square-port that works on LS blocks with a minimum bore of 4.100 inch. They are cast from A356-T61 aluminum and come with 70cc combustion chamber and 2.20/1.60 valves. Intake ports measure 260cc and have a flow rating of 393 cfm.

Image/s missing.

“We also have 1-piece billet rocker stands to get the geometry correct and keep it aligned,” says Downs, noting that stock rocker arms can be used.

Finally, Trick Flow had a new intake manifold for 351W engines on display. This R-series single-plane manifold is designed for heavily modified engines operating in the 3,500 to 7,500 rpm range. It can also be modified for EFI port injection.

Image/s missing.
